Product :

MH rubber spider coupling

浏览量
Weight:
0.00
Release time
2019/01/29 15:20
Inquiry
Booking
Application
Sample
Description

MH Flexible Coupling
Construction:
MH super flexible rubber couplings are precisely produced by a special designed synthetic rubber with 2 similar bodies of cast iron
Cast iron flange:
Designed not only for the power transmission but also for protection of flexible rubber
Flexible rubber:
Made of rubber and steel cores are inserted in the teeth so as to provide excellent durability and performance of coupling.

Applications:
Pumps, fans, compressors, vehicles, transporting equipments, constructors, cement mixers, tractors, transmission machines, metal working machines, rollers, and other transmissions.
Features:
Economical and practical using
Quiet and smoothly operation
Easy installation and maintenance
Available to machines with high torque and intermittent operation

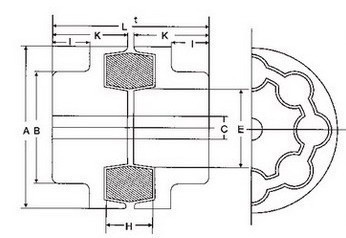

Type Out dia. Hub Bore size Rated misalignment Max speed L K H t I E Weight
A B Min Max Stock torque parellel angular (rpm) 0 to +0.1
MH 55 55 38 9 20 7 0.4 0.2 0.3 6000 57 27 17 3 15 26 0.6
MH 65 65 45 12 25 8 0.7 0.2 0.3 6000 63 30 19 3 16 33 0.9
MH 80 80 52 16 30 10 1.6 0.2 0.3 5500 73 35 23 3 18 41 1.5
MH 90 90 62 20 35 12 3.7 0.2 0.3 5000 83 40 25 3 21 46 2.2
MH 115 115 80 25 45 12 8 0.2 0.3 4600 113 55 33 3 29 58 5
MH 130 130 90 27 50 12 12 0.2 0.3 4400 123 60 37 3 32 65 7
MH 145 145 100 30 55 12 20 0.2 0.3 4200 133 65 39 3 35 72 9.2
MH 175 175 115 35 65 16 43 0.2 0.3 3800 163 80 47 3 43 84 16.1
MH 200 200 130 50 80 20 65 0.2 0.3 3600 223 110 53 3 69 92 35.5
MH 230 230 150 20 85 20 / 0.2 0.3 / 233 115 56 3 65 110 42
