WSS universal joint

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion.

hiddenValue

  • Description
  • A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.

    Features of WSS universal joint:

    1.Applicable to all kinds of general mechanical situation,max rotate speed reach 4000r/min.

    2.Stretch type,connects long distance between shafts

    3.Max ratation angle can be 45o

    4.Have single-jointed type and double type

    5.Fast locking is aviable

    6.Available in your choice of round, hex, splined, or keyway bore

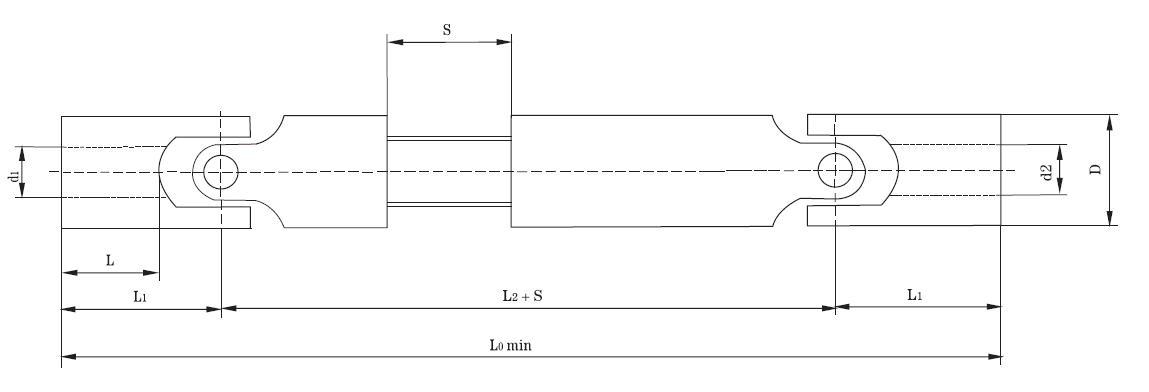

    Type Nominal torque Dimensions
    Tn D

    d1;d2

    L0min L L1 L2 S
    N·m

    mm

    WSS2 22.4 20.0 12.0 176.0 22.0 32.0 112.0 30.0
    WSS3 45.0 25.0 14.0 200.0 27.0 40.0 120.0 30.0
    WSS4 71.0 32.0 18.0 243.0 30.0 46.0 151.0 35.0
    WSS5 14.0 40.0 22.0 287.0 38.0 58.0 171.0 43.0
    WSS6 280.0 50.0 28.0 337.0 44.0 69.0 199.0 50.0
    WSS7 56.0 60.0 35.0 428.0 60.0 91.0 246.0 65.0
    WSS8 1120.0 75.0 42.0 556.0 84.0 122.0 322.0 90.0

    keywords:
    • universal drive shaft joint,
    • spline coupling,
    • universal joint suppliers,
    • universal shaft coupling,
    • universal joint
