  • WSD universal joint.jpg

WSD universal joint

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion.

Category

universal joint

Support

086-0317-7773773

Related
Get quotes

hiddenValue

  • Description

  • A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.

    WSD universal coupling is suitable for retating system which the two axis angle <45,nominal torque 11.2~1120N*m.

    Type Nominal torque
    Tn
    N·m    		 d
    H7    		 D L0 L L2 Mass
    m
    kg    		 Moment of inertia
    I
    kg·m2

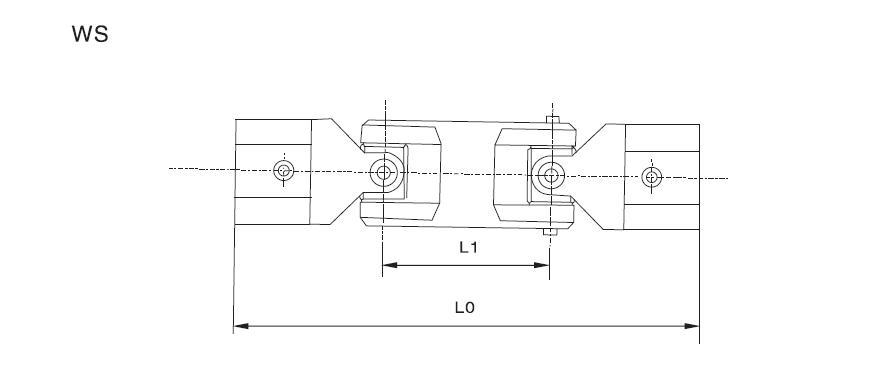

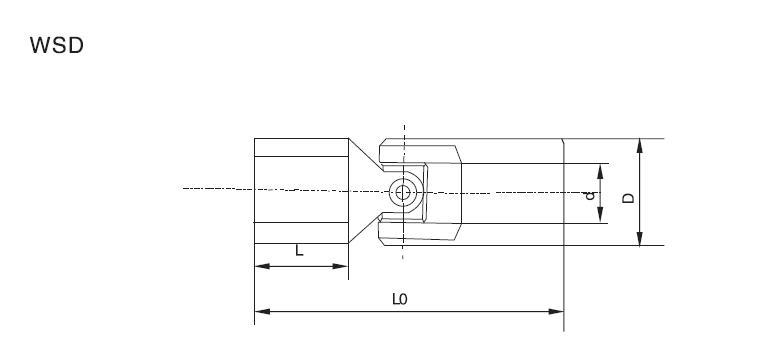

    WSD WS     WSD WS WSD WS
    Y J1 Y J1 Y J1 Y J1 Y J1 Y J1 Y J1
    WS1
    WSD1    		 11.2 8 16 60 - 80 - 20 - 20 0.23 - 0.32 - 0.06 - 0.08 -
    9
    10 66 60 86 80 25 22 0.20 0.29 0.05 0.07
    WS2
    WSD2    		 22.4 10 20 70 64 96 90 26 0.64 0.57 0.93 0.88 0.10 0.09 0.15 0.15
    11
    12 84 74 110 100 32 27
    WS3
    WSD3    		 45 12 25 90 80 122 112 32 1.45 1.30 2.10 1.95 0.17 0.15 0.24 0.22
    14
    WS4
    WSD4    		 71 16 32 116 82 154 130 42 30 38 5.92 4.86 8.56 0.48 0.39 0.32 0.56 0.49
    18
    WS5
    WSD5    		 140 19 40 144 116 192 164 48 16.3 12.9 24.0 20.6 0.72 0.59 1.04 0.91
    20 52 38
    22
    WS6
    WSD6    		 280 24 50 152 124 210 182 52 38 58 45.7 36.7 68.9 59.7 1.28 1.03 1.89 1.64
    25 172 136 330 194 62 44
    28
    WS7
    WSD7    		 560 30 60 226 182 296 252 82 60 70 148 117 207 177 2.82 2.31 3.90 3.38
    32
    35
    WS8
    WSD8    		 1120 38 75 240 196 332 288 92 396 338 585 525 5.03 4.41 7.25 6.63
    40 300 244 392 336 112 84
    42
