Product :

SWP-C cardan shaftuniversal joint

浏览量
Category
universal joint
Weight:
0.00
set
Release time
2019/01/11 14:06
Inquiry
Booking
Application
Sample
Description

General description

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.

No machine element other than a cardan shaft allows power transmission of torque between specially offset driving and driven shafts whose position can be changed during operation.

Spatial angular motion and changes of axial length are ensured by advanced constructional elements.

Thus, cardan shafts have become an indispensable transmission component in automotive engineering and industry.

Cardan shafts offer

##### » multifunctional application

##### » excellent efficiency

##### » high reliability

##### » low maintenance

##### » easy use

They are an integral part in almost all industries with mechanical drives.

Convince yourself that our products will solve your drive problems to your complete satisfaction.

Selection and use of cardan shafts

Cardan shafts being used for various applications. So it is impossible to select their size and predict their lifetime with reliable accuracy with just one general rule. The familiar failure probabilities for roller bearings apply to cardan shafts as well.

The size of the cardan shaft should be chosen so that its maximum momentary torque rating, is not smaller than the maximum torque to be transmitted in your application. Additionally parameters like deflection angle, speed, length, operating conditions (kind of drive, temperature, dust etc.) should be considered. Therefore please refer to our technical questionnaire. Our experts will evaluate your information given in this questionnaire, to find the best choice for your application. If you need more detailed calculations like determining lifetime, stability etc. please contact us.

Installation instructions

All anti- corrosion paint should be removed carefully from the cardan shaft flanges before the shaft is installed. Anti- corrosion agent on the cardan mounting flanges reduces frictional adhesion (not with flange yokes with staggered tooth arrangement).

Cardan shaft maintenance

It is necessary to grease the moving parts of a cardan shaft at certain intervals to remove used lubricant and foreign matter, if any, and replenishing the lubricant.

Lubrication is required after cleaning with high pressure or a steam jet.

General notes

» The installation of cardan shafts requires expertise and careful workmanship!

» Be sure to follow manufacturer's instructions forinstallation and repair.

» Parts to be installed in universal drives must bein perfect working order and approved for the specific application in hand.

» Make sure that cardan shaft locating centres are properly seated and that the flange surfaces are in perfect contact!

» The operation ratings must never be exceeded.

» Do not use high pressure (water, stream, air) for cleaning to prevent damage of the bearings and sealings!

Specific product description

SWP universal coupling/joint is mainly used in rolling milll,hoisting and other heavy machinery.

Features of SWP series cardan shaft:

1.Gyration diameter:160~640mm

2.Nominal torque:16~1250KN*m

3.Max angular misalignment: 10

4.Reasonable configuration,high safety and long service life

5.High transmission efficiecy:98.6%

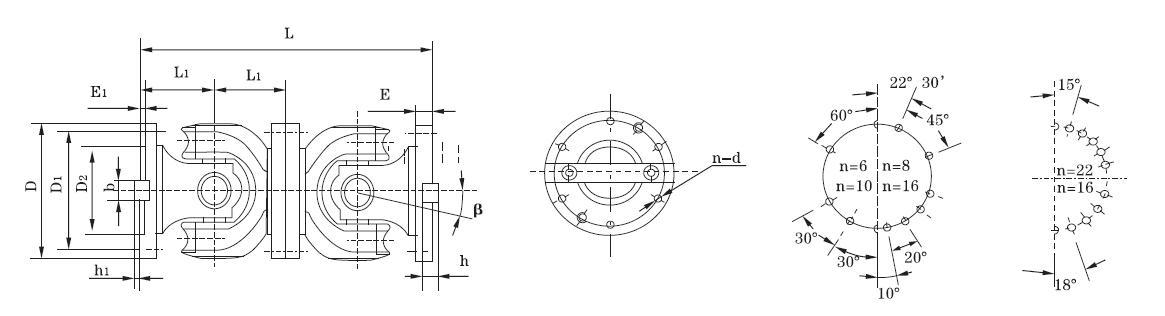

C:short non-stretch type



Type

D

Nominal torque

Tn/

kN·m

Weary torque

f/

kN·m

Angle

β/

(°)≤

L

1

(js11)

D2

(H7)

E

1

b×h

h1

L1

n-d

Moment of inertia

I/kg·m2

Mass

m/kg

SWP160C

160

16

8

10

340

140

95

15

4

20×12

6

85

6-13

0.11

31

SWP180 C

180

20

10

380

155

105

15

4

24×14

7

95

6-15

0.17

42

SWP200 C

200

31.5

16

440

175

125

17

5

28×16

8

110

8-15

0.29

59

SWP225 C

225

40

20

520

196

135

20

5

32×18

9

130

8-17

0.51

80

SWP250 C

250

63

31.5

540

218

150

25

5

40×25

12.5

135

8-19

0.93

119

SWP285 C

285

90

45

600

245

170

27

7

40×30

15

150

8-21

1.88

179

SWP315 C

315

140

63

680

280

185

32

7

40×30

15

170

10-23

2.88

232

SWP350 C

350

180

90

740

310

210

35

8

50×32

16

185

10-23

4.59

300

SWP390 C

390

250

112

820

345

235

40

8

70×36

18

205

10-25

8.64

432

SWP430 C

435

355

160

940

385

255

42

10

80×40

20

235

16-28

17.41

688

SWP480 C

480

450

224

1060

425

275

47

12

90×45

22.5

265

16-31

28.25

904

SWP550 C

550

710

315

1160

492

320

50

12

100×45

22.5

290

16-31

49.49

1309

SWP600 C

600

1000

500

1440

544

380

55

15

90×55

27.5

360

22-34

87.17

1377

SWP640 C

640

1250

630

1540

575

385

60

15

100×60

30

385

18-38

152.76

2635
