Product :

SWC-WD cardan shaft universal joint

浏览量
Category
universal joint
Weight:
0.00
set
Release time
2019/01/11 14:05
Inquiry
Booking
Application
Sample
Description

General description

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.

No machine element other than a cardan shaft allows power transmission of torque between specially offset driving and driven shafts whose position can be changed during operation.

Spatial angular motion and changes of axial length are ensured by advanced constructional elements.

Thus, cardan shafts have become an indispensable transmission component in automotive engineering and industry.

Cardan shafts offer

##### » multifunctional application

##### » excellent efficiency

##### » high reliability

##### » low maintenance

##### » easy use

They are an integral part in almost all industries with mechanical drives.

Convince yourself that our products will solve your drive problems to your complete satisfaction.

Selection and use of cardan shafts

Cardan shafts being used for various applications. So it is impossible to select their size and predict their lifetime with reliable accuracy with just one general rule. The familiar failure probabilities for roller bearings apply to cardan shafts as well.

The size of the cardan shaft should be chosen so that its maximum momentary torque rating, is not smaller than the maximum torque to be transmitted in your application. Additionally parameters like deflection angle, speed, length, operating conditions (kind of drive, temperature, dust etc.) should be considered. Therefore please refer to our technical questionnaire. Our experts will evaluate your information given in this questionnaire, to find the best choice for your application. If you need more detailed calculations like determining lifetime, stability etc. please contact us.

Installation instructions

All anti- corrosion paint should be removed carefully from the cardan shaft flanges before the shaft is installed. Anti- corrosion agent on the cardan mounting flanges reduces frictional adhesion (not with flange yokes with staggered tooth arrangement).

Cardan shaft maintenance

It is necessary to grease the moving parts of a cardan shaft at certain intervals to remove used lubricant and foreign matter, if any, and replenishing the lubricant.

Lubrication is required after cleaning with high pressure or a steam jet.

General notes

» The installation of cardan shafts requires expertise and careful workmanship!

» Be sure to follow manufacturer's instructions forinstallation and repair.

» Parts to be installed in universal drives must bein perfect working order and approved for the specific application in hand.

» Make sure that cardan shaft locating centres are properly seated and that the flange surfaces are in perfect contact!

» The operation ratings must never be exceeded.

» Do not use high pressure (water, stream, air) for cleaning to prevent damage of the bearings and sealings!

Specific product description

SWC universal coupling/joint is mainly used in rolling milll,hoisting and other heavy machinery.

Features of SWC series cardan shaft:

1.Gyration diameter:58~620mm

2.Nominal torque:0.15~1000KN*m

3.Max angular misalignment: 25

4.Reasonable configuration,high safety and long service life

5.High transmission efficiecy:98.6%

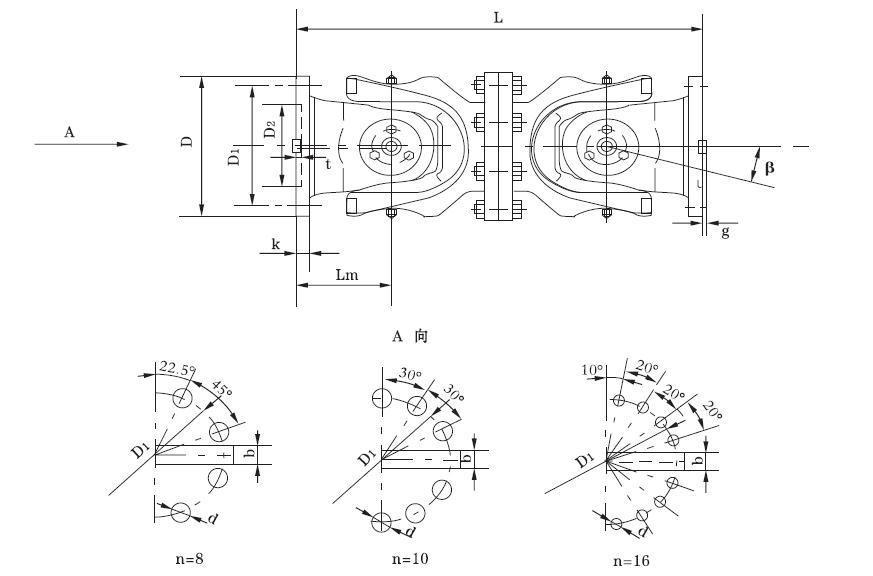

WD:short non-stretch flange type



Type

D

Nominal torque

Tn/

kN·m

Weary torque

f/

kN·m

Angle

β/

(°)≤

L

D1

(js11)

D2

(H7)

Lm

n-d

k

t

b

(h9)

g

Moment of inertia

I/kg·m2

Mass

m/kg

SWC180WD

180

12.5

6.3

25

440

155

105

110

8-17

17

5

-

-

0.145

52

SWC225WD

225

40

20

15

480

196

135

120

8-17

20

5

32

9

0.355

82

SWC250WD

250

63

31.5

15

560

218

150

140

8-19

25

6

40

12.5

0.831

127

SWC285WD

285

90

45

15

640

245

170

160

8-21

27

7

40

15

1.715

189

SWC315WD

315

125

63

15

720

280

185

180

10-23

32

8

40

15

2.82

270

SWC350WD

350

180

90

15

776

310

210

194

10-23

35

8

50

16

4.791

370

SWC390WD

390

250

125

15

860

345

235

215

10-25

40

8

70

18

8.229

524

SWC440WD

440

355

180

15

1040

390

255

260

16-28

42

10

80

20

15.32

798

SWC490WD

490

500

250

15

1080

435

275

270

16-31

47

12

90

22.5

25.74

1055

SWC550WD

550

710

355

15

1220

492

320

305

16-31

50

12

100

22.5

46.78

1524

SWC620WD

620

1000

500

15

1360

555

380

340

10-38

55

12

100

25

83.76

2120
