  • SWC-BF cardan shaftuniversal joint.jpg

SWC-BF cardan shaftuniversal joint

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion.

hiddenValue

  • Description
  • General description

    A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.

    No machine element other than a cardan shaft allows power transmission of torque between specially offset driving and driven shafts whose position can be changed during operation.

    Spatial angular motion and changes of axial length are ensured by advanced constructional elements.

    Thus, cardan shafts have become an indispensable transmission component in automotive engineering and industry.

    Cardan shafts offer

    ##### » multifunctional application

    ##### » excellent efficiency

    ##### » high reliability

    ##### » low maintenance

    ##### » easy use

    They are an integral part in almost all industries with mechanical drives.

    Convince yourself that our products will solve your drive problems to your complete satisfaction.

    Selection and use of cardan shafts

    Cardan shafts being used for various applications. So it is impossible to select their size and predict their lifetime with reliable accuracy with just one general rule. The familiar failure probabilities for roller bearings apply to cardan shafts as well.

    The size of the cardan shaft should be chosen so that its maximum momentary torque rating, is not smaller than the maximum torque to be transmitted in your application. Additionally parameters like deflection angle, speed, length, operating conditions (kind of drive, temperature, dust etc.) should be considered. Therefore please refer to our technical questionnaire. Our experts will evaluate your information given in this questionnaire, to find the best choice for your application. If you need more detailed calculations like determining lifetime, stability etc. please contact us.

    Installation instructions

    All anti- corrosion paint should be removed carefully from the cardan shaft flanges before the shaft is installed. Anti- corrosion agent on the cardan mounting flanges reduces frictional adhesion (not with flange yokes with staggered tooth arrangement).

    Cardan shaft maintenance

    It is necessary to grease the moving parts of a cardan shaft at certain intervals to remove used lubricant and foreign matter, if any, and replenishing the lubricant.

    Lubrication is required after cleaning with high pressure or a steam jet.

    General notes

    » The installation of cardan shafts requires expertise and careful workmanship!

    » Be sure to follow manufacturer's instructions forinstallation and repair.

    » Parts to be installed in universal drives must bein perfect working order and approved for the specific application in hand.

    » Make sure that cardan shaft locating centres are properly seated and that the flange surfaces are in perfect contact!

    » The operation ratings must never be exceeded.

    » Do not use high pressure (water, stream, air) for cleaning to prevent damage of the bearings and sealings!

    Specific product description

    SWC universal coupling/joint is mainly used in rolling milll,hoisting and other heavy machinery.

    Features of SWC series cardan shaft:

    1.Gyration diameter:58~620mm

    2.Nominal torque:0.15~1000KN*m

    3.Max angular misalignment: 25

    4.Reasonable configuration,high safety and long service life

    5.High transmission efficiecy:98.6%

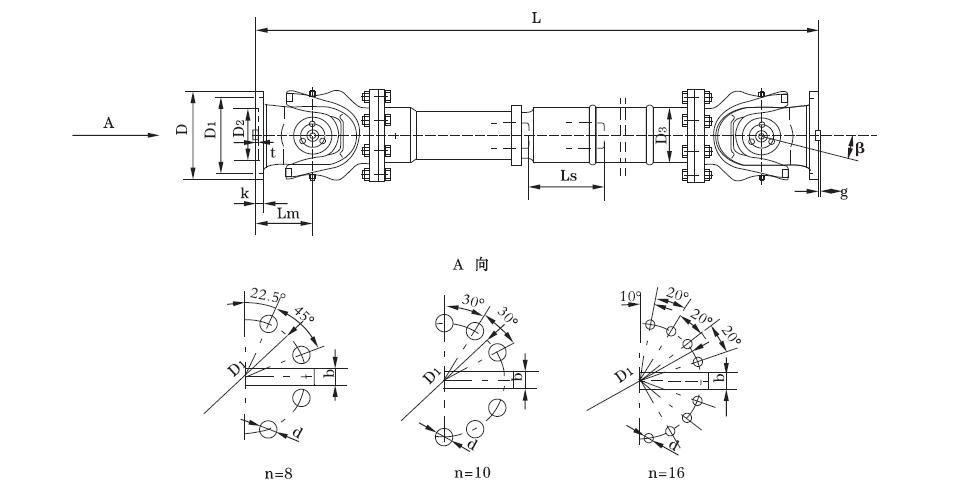

    BF:standard stretch flange type

    Type

    D

    Nominal torque

    Tn/

    kN·m

    Weary torque

    f/

    kN·m

    Angle

    β/

    (°)≤

    LS

    Lmin

    D1

    (js11)

    D2

    (H7)

    D3

    Lm

    n-d

    k

    t

    b

    (h9)

    g

    Moment of inertia

    I/kg·m2

    Mass

    m/kg

    Lmin

    Increase per 100mm

    Lmin

    Increase per 100mm

    SWC180BF

    180

    12.5

    6.3

    25

    100

    810

    155

    105

    114

    110

    8-17

    17

    5

    -

    -

    0.267

    0.007

    80

    2.8

    SWC225BF

    225

    40

    20

    15

    140

    920

    196

    135

    152

    120

    8-17

    20

    5

    32

    9

    0.788

    0.0234

    138

    4.9

    SWC250BF

    250

    63

    31.5

    15

    140

    1035

    218

    150

    168

    140

    8-19

    25

    6

    40

    12.5

    1.445

    0.0277

    196

    5.3

    SWC285BF

    285

    90

    45

    15

    140

    1190

    245

    170

    194

    160

    8-21

    27

    7

    40

    15

    2.873

    0.051

    295

    6.3

    SWC315BF

    315

    125

    63

    15

    140

    1315

    280

    185

    219

    180

    10-23

    32

    8

    40

    15

    5.094

    0.0795

    428

    8

    SWC350BF

    350

    180

    90

    15

    150

    1410

    310

    210

    267

    194

    10-23

    35

    8

    50

    16

    9.195

    0.2219

    632

    15

    SWC390BF

    390

    250

    125

    15

    170

    1590

    345

    235

    267

    215

    10-25

    40

    8

    70

    18

    16.62

    0.2219

    817

    15

    SWC440BF

    440

    355

    180

    15

    190

    1875

    390

    255

    325

    260

    16-28

    42

    10

    80

    20

    28.24

    0.4744

    1290

    21.7

    SWC490BF

    490

    500

    250

    15

    190

    1985

    435

    275

    325

    270

    16-31

    47

    12

    90

    22.5

    46.33

    0.4744

    1631

    21.7

    SWC550BF

    550

    710

    355

    15

    240

    2300

    492

    320

    426

    305

    16-31

    50

    12

    100

    22.5

    86.98

    1.357

    2567

    34

    SWC620BF

    620

    1000

    500

    15

    240

    2500

    555

    380

    426

    340

    10-38

    55

    12

    100

    25

    147.5

    1.357

    3267

    34
