UL tyre coupling
Tanso tyre couplings requires no lubrication prompting cleanliness that is especially desirable in such fields as food processing and textiles hence requiring no periodic maintenance as a result.
hiddenValue
- Description
-
Features:
1. Acts as Self-Aligning Agent
2. Avoids Metal Contact
3. Smoothness Vibration
4. Gives Life to Bearings
5. Removes Unpleasant Sound
6. Takes End Level Shock Load
7. Makes Easy Replacement
8. Suits to Vertical Drive
9. Avoids Cost Against Breakdown
10. Decreases Temperature Rise
Cushion Shock Loads
It cushions Shock Loads and absorbs Torsional and Lateral Vibration real enemies of valuable machines. Vibrations that could produce undesirable sounds are also isolated. Transmission of gear noise and motor hum between shafts is reduced. Tanso tyre coupling provides just a steady constant dampening effect regardless of the direction of rotation and protects system components from fatigue failure.
No Lubrication or Maintenance
Tanso tyre couplings requires no lubrication prompting cleanliness that is especially desirable in such fields as food processing and textiles hence requiring no periodic maintenance as a result.
Simplified Design
No gears • No seals • No bearings • No wearing parts • No backlash clearance. Tanso tyre coupling forms one combined assembly, there is no relative movement inside of any part.
Easy Installation
Quick and Easy to install • No need for precise Shaft Alignment
Initial assembly of the Tanso tyre coupling is a simple operation. Alignment may be roughly checked by placing accurate measuring equipment, since small errors in misalignment are easily, accommodated by the Resilient Member. To replace the Flexible Member, simply loosen the Bolts, remove the Tyre and replace with a new one. It is not necessary to move either the driving or driven machines during the entire operation. The split Flexible Member is placed so that bearing on both sides is held between the Flanges and the Clamping Rings. The bolts are then tightened into place to grip the Resilient Member fully.
Safety
No metal to metal contact between two shafts, therefore. the cushion coupling insulates against flow of current from one shaft to the other No sharp edges, metal surfaces are finished all over.

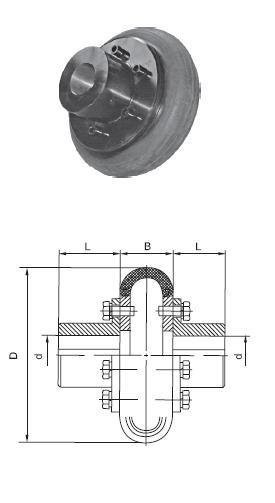

Specific product description
Type
Nominal torque
Tn/
N·m
Peak
torque
Tmax
/N·m
Speed
[n]/r·min-1
Bore diameter
d(H7)
Bore length
L
D
B
D1
Moment of inertia
I/
kg·m2
Mass
m/
kg
Steel
Iron
Steel
Iron
J、J1
Y
UL1
10
31.5
5000
3500
11
11
22
25
80
20
42
0.0003
0.7
12、14
12、14
27
32
16、18
16
30
42
UL2
25
80
3000
14
14
27
32
100
26
51
0.0008
1.2
16、18、19
16、18、19
30
42
20、22
20
38
52
UL3
63
180
4300
18、19
18、19
30
42
120
32
62
0.0022
1.8
20、22、24
20、22
38
52
25
44
UL4
100
315
4500
3000
20、22、24
20、22、24
38
52
140
38
69
0.0044
3
25、28
25
44
62
30
60
UL5
160
500
4000
24
24
38
52
160
45
80
0.0084
4.6
25、28
25、28
44
62
30、32、35
30
60
82
UL6
250
710
3600
2500
28
28
44
62
180
50
90
0.0164
7.1
30、32、35、38
30、32、35
60
82
40
84
112
UL7
315
900
3200
32、35、38
32、35、38
60
82
200
56
104
0.029
10.9
40、42、45、48
40、42
84
112
UL8
400
1250
3000
2000
38
38
60
82
220
63
110
0.0448
13
40、42、45、48、50
40、42、45
84
112
UL9
630
1800
2800
42、45、48、50、55、56
42、45、48、50、55
84
112
250
71
130
0.0898
20
60
107
UL10
800
2240
2400
1600
45*、48*、50、55、56
45*、48*、50、55、56
84
112
280
80
148
0.1596
30.6
60、63
60、63
107
142
UL11
1000
2500
2100
50*、55*、56*
50*、55*、56*
84
112
320
90
165
0.2792
39
60、63、65、70、71、75
60、63、65
107
142
UL12
1600
4000
2000
55*、56*
55*、56*
84
112
360
100
188
0.5356
59
60、63、65、70、71、75
60、63、65、70、71、75
107
142
80、85
80
132
172
UL13
2500
6300
1800
63*、65*、70*、71*、75*
63*、65*、70*、71*、75*
107
142
400
110
210
0.896
81
80、85、90、95
80、85、90、95
132
172
UL14
4000
10000
1600
1400
75*
75*
107
142
480
130
254
2.2616
145
80*、85*、90*、95*
80*、85*、90*、95*
132
172
100、110
100、110
167
212
UL15
6300
14000
1200
1120
85*、90*、95*
90*、95*
132
172
560
150
300
4.6456
222
100*、110*、120*、125*
100*、110*、120*、125*
167
212
UL16
10000
20000
1000
1000
100*、110*、120*、125*
100*、110*、120*、125*
630
180
335
8.0924
302
130、140
130、140
202
252
UL17
16000
31500
900
850
120*、125*
167
212
750
210
405
20.0176
561
130*、140*、150*
130*、140*、150*
202
252
160*
160*
242
302
UL18
25000
59000
800
750
140*、150*
202
252
900
250
490
43.053
818
160*、170*、180*
160*、170*、180*
242
302
