LB tyre coupling

浏览量
Category
tyre coupling
Weight:
0.00
Release time
2019/01/11 13:58
Inquiry
Booking
Application
Sample
Description

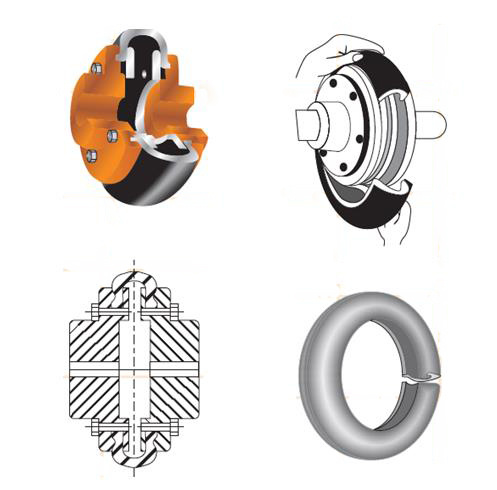

Features:

1.      Acts as Self-Aligning Agent

2.      Avoids Metal Contact

3.      Smoothness Vibration

4.      Gives Life to Bearings

5.      Removes Unpleasant Sound

6.      Takes End Level Shock Load

7.      Makes Easy Replacement

8.      Suits to Vertical Drive

9.      Avoids Cost Against Breakdown

10.    Decreases Temperature Rise

Cushion Shock Loads

It cushions Shock Loads and absorbs Torsional and Lateral Vibration real enemies of valuable machines. Vibrations that could produce undesirable sounds are also isolated. Transmission of gear noise and motor hum between shafts is reduced. Tanso tyre coupling provides just a steady constant dampening effect regardless of the direction of rotation and protects system components from fatigue failure.

No Lubrication or Maintenance

Tanso tyre couplings requires no lubrication prompting cleanliness that is especially desirable in such fields as food processing and textiles hence requiring no periodic maintenance as a result.

Simplified Design

No gears • No seals • No bearings • No wearing parts • No backlash clearance. Tanso tyre coupling forms one combined assembly, there is no relative movement inside of any part.

Easy Installation

Quick and Easy to install • No need for precise Shaft Alignment

Initial assembly of the Tanso tyre coupling is a simple operation. Alignment may be roughly checked by placing accurate measuring equipment, since small errors in misalignment are easily, accommodated by the Resilient Member. To replace the Flexible Member, simply loosen the Bolts, remove the Tyre and replace with a new one. It is not necessary to move either the driving or driven machines during the entire operation. The split Flexible Member is placed so that bearing on both sides is held between the Flanges and the Clamping Rings. The bolts are then tightened into place to grip the Resilient Member fully.

Safety

No metal to metal contact between two shafts, therefore. the cushion coupling insulates against flow of current from one shaft to the other No sharp edges, metal surfaces are finished all over.

Specific product description



Type

Dimensionsmm

Bolt amount
Md×L

Bore diameter

Bore length

Torque

Speed

Moment of inertia

Mass

D

D1

S

d dz

L

Tn

n

I

m

Y

J1Z1

N.M

r/min

Kg.m2

Kg

LB1

63/60

20

26

12
M4×12

6.7

16

/

10

5000

0.0003

0.4

8.9

20

/

10.11

25

/

LB2

100

36

32/37

12
M6×18

10.11

25

/

50

5000

0.0035

1.5

12.14

32

27

16.18.19

42

30

LB3

120

44

39

12
M8×20

16.18.19

42

30

100

4500

0.01

2.2

20.22.24

52

38

LB4

140

50

45

12
M10×20

22.24

52

38

160

4200

0.021

3.1

25.28

62

44

30.32.35

82.60



LB5

160

60

51

12
M10×22

25.28

62

44

224

4000

0.031

5

30.32.35.38

82

60

LB6

185

70

58

12
M12×25

30.32.35.38

82

60

315

3600

0.07

8.1

40.42.45

112

84

LB7

220

85

68

12
M12×28

35.38

82

60

500

3200

0.15

13

40.42.45.48.50

112

84

LB8

265

110

82

12
M12×32

40.42.45.48

112

84

800

2600

0.30

22

50.55.56

112

84

60.63

142

107

LB9

310

120

106

12
M16×40

45.48.50.55.56

112

84

1250

2200

0.75

35

60.6365.70.71

142

107

/

34

135

106

12
M6×45

55.56

112

84

1600

2000

1.10

51

60.63.65.7071.75

142

107

LB10

400

150

124

12
M20×50

60.63.65.7071.75

142

107

2250

1800

2.20

69

80.85

172

132

LB11

450/445

190

140

12
M20×56

80.85.90.95

172

132

5000

1600

4.4

110

100.110120

212

167

LB12

560/550

238

172

16
M24×71

100.110.120.125

212

167

10000

1200

14

190

130.140.150

252

202

LB13

700

318

220

24
M24×71

130.140.150

252

202

20000

1000

38

340

160.170.180

302

242

190.200

352

282
