DL tyre coupling

Tanso tyre couplings requires no lubrication prompting cleanliness that is especially desirable in such fields as food processing and textiles hence requiring no periodic maintenance as a result.

hiddenValue

  • Description
  • Features:

    1.      Acts as Self-Aligning Agent

    2.      Avoids Metal Contact

    3.      Smoothness Vibration

    4.      Gives Life to Bearings

    5.      Removes Unpleasant Sound

    6.      Takes End Level Shock Load

    7.      Makes Easy Replacement

    8.      Suits to Vertical Drive

    9.      Avoids Cost Against Breakdown

    10.    Decreases Temperature Rise

    Cushion Shock Loads

    It cushions Shock Loads and absorbs Torsional and Lateral Vibration real enemies of valuable machines. Vibrations that could produce undesirable sounds are also isolated. Transmission of gear noise and motor hum between shafts is reduced. Tanso tyre coupling provides just a steady constant dampening effect regardless of the direction of rotation and protects system components from fatigue failure.

    No Lubrication or Maintenance

    Tanso tyre couplings requires no lubrication prompting cleanliness that is especially desirable in such fields as food processing and textiles hence requiring no periodic maintenance as a result.

    Simplified Design

    No gears • No seals • No bearings • No wearing parts • No backlash clearance. Tanso tyre coupling forms one combined assembly, there is no relative movement inside of any part.

    Easy Installation

    Quick and Easy to install • No need for precise Shaft Alignment

    Initial assembly of the Tanso tyre coupling is a simple operation. Alignment may be roughly checked by placing accurate measuring equipment, since small errors in misalignment are easily, accommodated by the Resilient Member. To replace the Flexible Member, simply loosen the Bolts, remove the Tyre and replace with a new one. It is not necessary to move either the driving or driven machines during the entire operation. The split Flexible Member is placed so that bearing on both sides is held between the Flanges and the Clamping Rings. The bolts are then tightened into place to grip the Resilient Member fully.

    Safety

    No metal to metal contact between two shafts, therefore. the cushion coupling insulates against flow of current from one shaft to the other No sharp edges, metal surfaces are finished all over.



    Specific product description

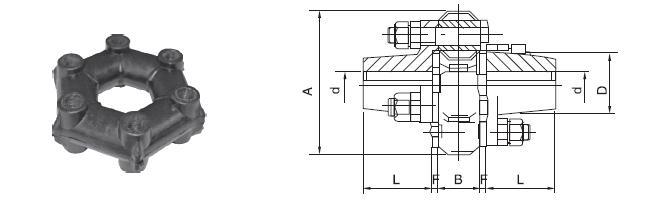

    DL hexagon coupling element
    1.Good buffer
    2.Easy to Installation
    3.Long life
    4.ISO9001:2008 Certificate

    DL hexagon coupling element advantage :

    1. It is easy to maintain ,no need the toole can install



    2. Can undertake high torque



    3. Have the good buffer .



    4. Flexibility,large damping ,large compensation dosage.



    Model No.

    Rated

    torque

    Tn/

    N·m

    Max

    speed

    [n]/

    r·min-1

    Angular

    misalignment

    /(°)

    Shaft hole/Bore diameter

    d1、d2、dz

    Bore length

    D

    A

    L2

    L3

    Moment of

    inertia

    I/

    kg·m2

    Mass

    m/kg

    Y

    J1、Z1

    L

    L1

    LD1

    50

    5000

    5

    12、14

    32

    96

    42

    75

    28

    0.001

    1.9

    16、18、19

    42

    30

    20、22、24

    52

    38

    25

    62

    44

    LD2

    80

    4000

    16、18、19

    42

    30

    118

    55

    85

    32

    0.0031

    3.9

    20、22、24

    52

    38

    25、28

    62

    44

    30、32

    82

    60

    LD3

    160

    3150

    4

    20、22、24

    52

    38

    142

    68

    105

    46

    0.0089

    8

    25、28

    62

    44

    30、32、35、38

    82

    60

    40

    112

    84

    LD4

    280

    2500

    22、24

    52

    38

    182

    92

    120

    52

    0.026

    14.2

    25、28

    62

    44

    30、32、35、38

    82

    60

    40、42、45、48、50、55

    112

    84

    LD5

    560

    2000

    25、28

    62

    44

    235

    122

    140

    62

    0.095

    31.4

    30、32、35、38

    82

    60

    40、42、45、48、50、55、56

    112

    84

    60、63、65、70、71

    142

    107

    LD6

    800

    1800

    28

    62

    44

    258

    128

    150

    68

    0.132

    35.6

    30、32、35、38

    82

    60

    40、42、45、48、50、55、56

    112

    84

    60、63、65、70、71

    142

    107

    LD7

    1250

    1600

    35、38

    82

    60

    282

    148

    185

    78

    0.287

    58.4

    40、42、45、48、50、55、56

    112

    84

    60、63、65、70、71、75

    142

    107

    80、85

    172

    132

    LD8

    2500

    1250

    40、42、45、48、50、55、56

    112

    84

    372

    190

    230

    100

    0.952

    117.1

    60、63、65、70、71、75

    142

    107

    80、85、90、95

    172

    132

    100、110

    212

    167

    LD9

    3550

    1120

    45、48、50、55、56

    112

    84

    420

    220

    270

    115

    1.981

    171.8

    60、63、65、70、71、75

    142

    107

    80、85、90、95

    172

    132

    100、110、120、125、130

    212

    167

    LD10

    5600

    1000

    50、55、56

    112

    84

    465

    242

    295

    130

    3.606

    252.9

    60、63、65、70、71、75

    142

    107

    80、85、90、95

    172

    132

    100、110、120、125

    212

    167

    130、140、150

    252

    202

    LD11

    8000

    900

    60、63、65、70、71、75

    142

    107

    520

    260

    365

    150

    7.48

    386.7

    80、85、90、95

    172

    132

    100、110、120、125

    212

    167

    130、140、150

    252

    202

    160

    302

    242
