GL roller chain coupling
Roller chain coupling consists of a common chain ,two side by side sprockets which have the same number of teeth and a cover.
hiddenValue
- Description
-
Roller chain coupling consists of a common chain ,two side by side sprockets which have the same number of teeth and a cover.There are following types of roller chain coupling:double roller chain coupling,single roller chain coupling,toothed chain coupling,nylon chain coupling,etc.Double roller chain coupling structure is superior to other types of couplings and widely used.
Features of roller chain coupling:1.Simple structure,easy essembly and disessembly.2.Light weight,and long service life3.Have a certain ability to compensate for installation less precision4.Suitable for high temperature,wet and dusty industrial environment5.Can not for high speed,violent vibration

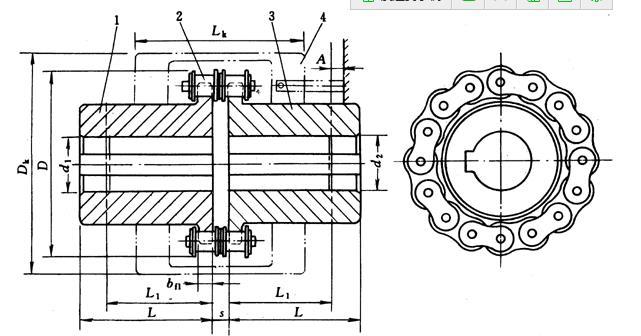

Type
Nominal torque
Tn
/N·m
Max speed
[n]
/r·min-1
Bore diameter
d1、d2
Bore length
Chain NO.
Pitch
Numbers of teeth
Z
D
bf1
s
A
Dk
max
Lk
max
Mass
m/kg
Moment of inertia
I
/kg·m2
Misalignment
No cover
With cover
Y
J1
Parallel
Δy
Axial
Δx
Angular
Δα
/（°）
L
L1
GL1
40
1400
4500
16、18、19
42
-
06B
9.525
14
51.06
5.3
4.9
-
70
70
0.40
0.0001
0.19
1.414
1
20
52
38
4
GL2
63
1250
4500
19
42
-
06B
9.525
16
57.08
5.3
4.9
-
75
75
0.7
0.0002
20、22、24
52
38
4
GL3
100
1000
4000
20、22、24
52
38
08B
12.7
14
68.88
7.2
6.7
12
85
80
1.1
0.00038
0.25
1.9
25
62
44
6
GL4
160
1000
4000
24
52
-
08B
12.7
16
76.91
7.2
6.7
-
95
88
1.8
0.00086
25、28
62
44
6
30、32
82
60
-
GL5
250
800
3150
28
62
-
10A
15.875
16
94.46
8.9
9.2
-
112
100
3.2
0.0025
0.32
2.3
30、32、35、38
82
64
40
112
84
GL6
400
630
2500
32、35、38
82
60
10A
15.875
20
116.57
8.9
9.2
-
140
105
5.0
0.0058
40、42、45、48、50
112
84
GL7
630
630
2500
40、42、45、48、50、55
112
84
12A
19.05
18
127.78
11.9
10.9
-
150
122
7.4
0.012
0.38
2.8
60
142
107
GL8
1000
500
2240
45、48、50、55
112
84
16A
25.4
16
154.33
15
14.3
12
180
135
11.1
0.025
0.5
3.8
60、65、70
142
107
GL9
1600
400
2000
50、55
112
84
16A
25.4
20
186.5
15
14.3
12
215
145
20
0.061
60、65、70、75
142
107
-
80
172
132
GL10
2500
315
1600
60、65、70、75
142
107
20A
31.75
18
213.02
18
17.8
6
245
165
26.1
0.079
0.63
4.7
80、85、90
172
132
-
GL11
4000
250
1500
75
142
167
24 A
38.1
16
213.49
24
21.5
35
270
195
39.2
0.188
0.76
5.7
80、85、90、95
172
132
10
100
212
167
-
GL12
6300
250
1250
85、90、95
172
167
28A
44.45
16
270.08
24
24.9
20
310
205
59.4
0.38
0.88
6.6
100、110、120
212
202
-
GL13
10000
200
1120
100、110、120、125
212
167
32 A
50.8
18
340.8
30
28.6
14
380
230
86.5
0.869
1
7.6
130、140
252
202
-
GL14
16000
200
1000
120、125
212
167
32 A
50.8
22
405.22
30
28.6
14
450
250
150.8
2.06
130、140、150
252
202
-
160
302
242
GL15
25000
200
900
140、150
252
202
40 A
63.5
20
466.25
36
35.6
18
510
285
234.44
4.37
1.27
9.5
160、170、180
302
242
-
190
352
282
