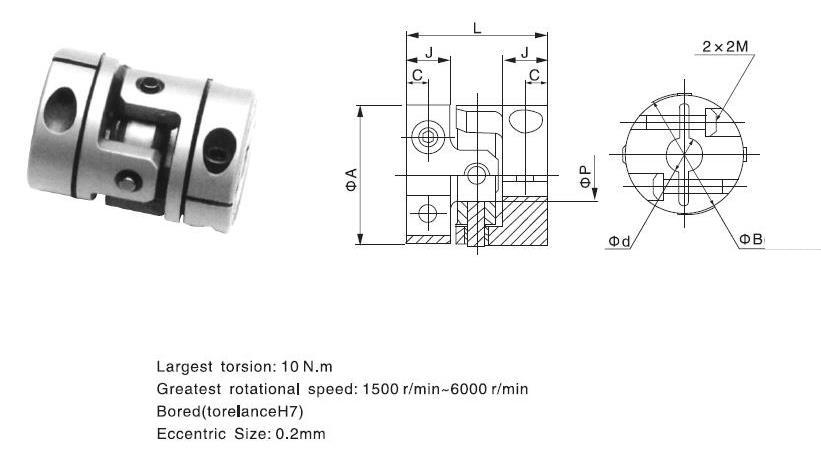

  • TS11C precision universal joint.jpg

TS11C precision universal joint

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion.

hiddenValue

  • Description
  • A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.



    Model Mass
    g
    d A B P L J G M
    TS11C-15 8 3~5 15 16 4 18 6 3 M2.5
    TS11C-20 18 4~8 20 22 7 20 7 3.5 M3
    TS11C-25 34 5~10 25 27 10 27 9 4.5 M4
    TS11C-30 47 6~14 30 32 10 30 9.5 4.5 M4
    TS11C-35 81 8~16 35 37 13 35 11.5 5.5 M5
    TS11C-40 117 8~20 40 42 15 40 12.5 6 M5
