Product ：

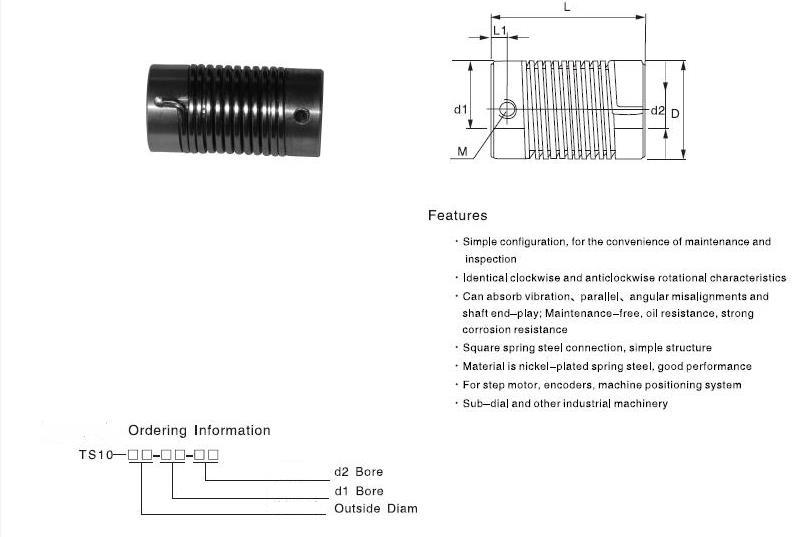

TS10 steel bellows coupling
浏览量 ：
Category：
precision coupling
Weight：
0.00
Release time ：
2019/01/11 11:20
Inquiry
Booking
Application
Sample
Description
| Model |
Φ d1Φd2 Bore |
ΦD | L | L1 | L2 | W |
| TS10-16 | 6 6.35 8 | 16 | 35 | 5 | - | M4 |
| TS10-26 | 6 8 10 12 | 26 | 50 | 5 | - | M5 |
| Model |
Rated Torque （N·m） |
Max.Torque （N·m） |
Max.Rotational Frequency （rpm） |
Enors of Eccentricity mm |
Enors of Shaft End-slay mm |
Enors of Angularit |
Wrench Torque N·m |
| TS10-16 | 1.5 | 3.0 | 3000 | ±1.5 | ±1 | ±5 | 1.7 |
| TS10-26 | 0.5 | 1.0 | 3000 | ±1.5 | ±1 | ±5 | 4 |
