  • TS9 encode coupling.jpg

TS9 encode coupling

Features of TS9 encode coupling

hiddenValue

  • Description
  • Features of TS9 encode coupling:

    1.Ployestar resin with glass fibars

    2.For encode

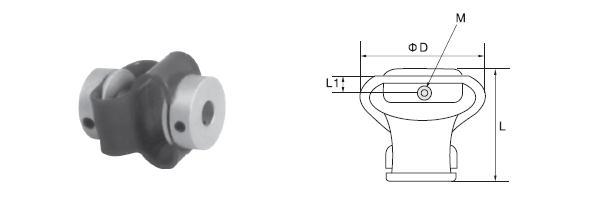

    Model

    Φ d1Φd2
     Bore

    ΦD

    L

    L1

    M

    W

    TS9-13

    4

    13

    22

    3.2

    M3

    0.7

    TS9-15

    6

    15

    22

    3.2

    M3

    0.7

    TS9-25

    4 6 8 10

    25

    32

    3.2

    M3

    0.7





    Model

    Rated Torque
    N·m

    Max.Torque
    N·m

    Max.Rotational Frequency
    rpm

    Angular misalignment

    Mass
    g

    TS9-13

    0.6

    1.2

    6000

    3

    2.8

    TS9-15

    0.8

    1.6

    6000

    3

    4

    TS9-25

    0.8

    1.6

    6000

    3

    13
