  • TS7Z precision rigid couplinglock.jpg

TS7Z precision rigid couplinglock

TS7Z series precision lock is suitable for the joint between long shafts and hubs and can transmit bigger torque.They can replace couplings in some mechanical transmission if the shaft diameter and precision are the same.

hiddenValue

  • Description
  • TS7Z series precision lock is suitable for the joint between long shafts and hubs and can transmit bigger torque.They can replace couplings in some mechanical transmission if the shaft diameter and precision are the same.

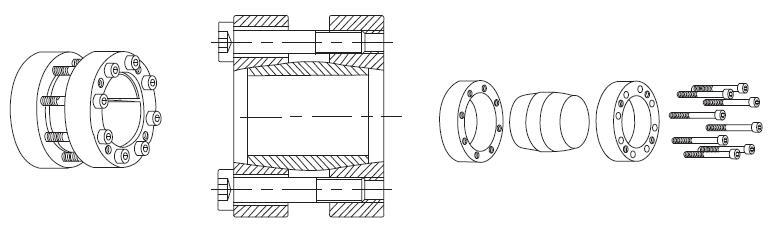

    The working principle of TS7Z is as following:under the pressure of tightening bolts,two tightening rings with inner taper surface press the inner ting with outer taper surface and then make it contract to tighten the hubs and shafts.The emerged radial pressure and friction force make the hubs and shafts join together.

    Features:

    1.Simple structure,easy to assembly and disassembly



    2.Low cost,convenient to use

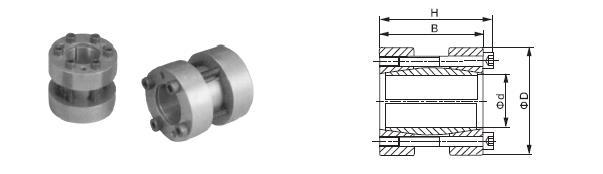

    Catalog
    d×D

    Fundamental dimensions

    Sizes×N

    Rated load

    Ps
    Mpa

    Ma
    N·m

    G
    Kg

    A

    B

    Ft(Kn)

    Mt(Kn·m)

    TS7Z15×45
    TS7Z16×45
    TS7Z17×45
    TS7Z18×50
    TS7Z16×50

    50

    56

    M6×4

    16.8

    0.126

    127

    17

    0.4

    50

    56

    M6×4

    16.8

    0.134

    119

    17

    0.4

    50

    56

    M6×4

    16.8

    0.142

    112

    17

    0.4

    50

    56

    M6×4

    16.8

    0.151

    105

    17

    0.5

    50

    56

    M6×4

    16.8

    0.159

    100

    17

    0.5

    TS7Z20×50
    TS7Z22×55
    TS7Z24×55
    TS7Z25×55
    TS7Z28×60

    50

    56

    M6×4

    16.8

    0.168

    95

    17

    0.5

    60

    66

    M6×4

    25.2

    0.277

    103

    17

    0.7

    60

    66

    M6×4

    25.2

    0.302

    95

    17

    0.73

    60

    66

    M6×6

    25.2

    0.315

    91

    17

    0.77

    60

    66

    M6×6

    25.2

    0.327

    87

    17

    0.91

    TS7Z30×60
    TS7Z32×65
    TS7Z35×75
    TS7Z38×75
    TS7Z40×75

    60

    66

    M6×6

    25.2

    0.352

    81

    17

    0.81

    60

    66

    M6×6

    31.2

    0.378

    76

    17

    0.80

    75

    83

    M8×4

    31.2

    0.499

    80

    42

    1.30

    75

    83

    M8×4

    31.2

    0.546

    73

    42

    1.20

    75

    83

    M8×4

    31.2

    0.592

    67

    42

    1.40

    TS7Z42×78
    TS7Z45×85
    TS7Z48×90
    TS7Z50×90
    TS7Z55×95

    75

    83

    M8×4

    31.2

    0.624

    64

    42

    1.33

    85

    93

    M8×6

    46.8

    0.982

    74

    42

    2.30

    85

    93

    M8×6

    46.8

    1.053

    69

    42

    2.30

    85

    93

    M8×6

    46.8

    1.123

    65

    42

    2.50

    85

    93

    M8×8

    62.4

    1.17

    62

    42

    2.40

    TS7Z55×100
    TS7Z65×105
    TS7Z70×115
    TS7Z75×120
    TS7Z80×125

    85

    93

    M8×8

    62.4

    1.17

    58

    42

    3.00

    85

    93

    M8×8

    62.4

    1.87

    53

    42

    3.30

    100

    110

    M10×6

    62.4

    2.02

    49

    84

    4.10

    100

    110

    M10×6

    91

    2.12

    47

    84

    3.80

    100

    110

    M10×8

    98.4

    3.44

    66

    84

    5.20

    TS7Z85×130
    TS7Z90×135
    TS7Z95×140
    STS7Z100×150
    TS7Z105×155

    100

    110

    M10×8

    123

    3.69

    62

    84

    5.50

    100

    110

    M10×8

    123

    4.92

    73

    84

    7.00

    120

    132

    M10×8

    123

    5.22

    68

    84

    7.50

    120

    132

    M12×8

    144

    5.53

    65

    145

    7.80

    120

    132

    M12×8

    144

    5.84

    57

    145

    7.90

    TS7Z110×160

    120

    132

    M12×8

    180

    7.20

    65

    145

    10.4
