TS7C precision rigid coupling

浏览量
Weight:
0.00
Release time
2019/01/11 11:19
Inquiry
Booking
Application
Sample
Description

A rigid coupling is a unit of hardware used to join two shafts within a motor or mechanical system. It may be used to connect two separate systems, such as a motor and a generator, or to repair a connection within a single system. A rigid coupling may also be added between shafts to reduce shock and wear at the point where the shafts meet.

Features of TS7C rigid coupling:

1.Light weight,extremely low inertia and high response

2.Available in aluminum alloy and stainless steel



3.Clamp type

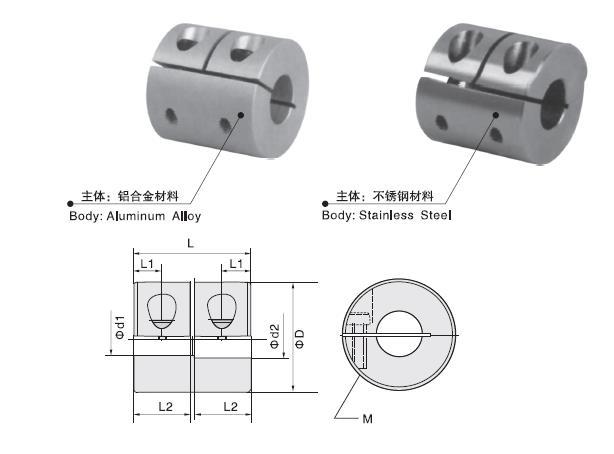

Model

Φ d1Φd2
 Bore diameter

ΦD

L

L1

L2

M

Wrench Torque
N·m

TS7C-16

5 6

16

16

3.75

7.5

M3

1

TS7C-20

6 8

20

20

4.75

9.5

M3

1

TS7C-25

8 10

25

25

6

12

M4

1.5

TS7C-32

10 12 14

32

32

7.75

15.5

M4

2.5

STS7C-16

5 6

16

16

3.75

7.5

M3

1

STS7C-20

6 8

20

20

4.75

9.5

M3

1

STS7C-25

8 10

25

25

6

12

M4

1.5

STS7C-32

10 11 12 14

32

32

7.75

15.5

M4

2.5





Model

Rated Torque
N·m

Max.Torque
N·m

Max.Rotational Frequency
rpm

Moment of inertia
kg·m2

Mass
g

TS7C-16

0.3

0.6

7300

2.9×10-7

8.2

TS7C-20

0.5

1

5400

8.6×10-7

14.5

TS7C-25

1

2

4000

2.6×10-6

2.8

TS7C-32

2

4

3600

7.0×10-6

50

STS7C-16

0.3

0.6

7300

7.9×10-7

21

STS7C-20

0.5

1

5400

2.3×10-6

40

STS7C-25

1

2

4000

7.2×10-6

79

STS7C-32

2

4

3600

2.4×10-6

158
