TS7 precision rigid coupling

A rigid coupling is a unit of hardware used to join two shafts within a motor or mechanical system.

hiddenValue

  • Description
  • A rigid coupling is a unit of hardware used to join two shafts within a motor or mechanical system. It may be used to connect two separate systems, such as a motor and a generator, or to repair a connection within a single system. A rigid coupling may also be added between shafts to reduce shock and wear at the point where the shafts meet.

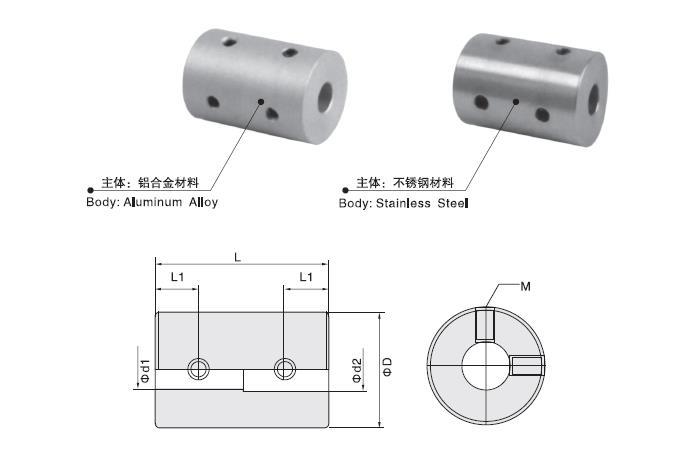

    Features of TS7 rigid coupling:

    1.Light weight, extremely low inertia and high response

    2.Available in aluminum alloy and stainless steel



    3.Setscrew type

    Model

    Φ d1Φd2
     Bore

    ΦD

    L

    L1

    M

    Wrench Torque
    N·m

    TS7-16

    3 4 5 6

    16

    24

    6

    M3

    0.7

    TS7-20

    5 6 8 10

    20

    30

    7

    M3

    0.7

    TS7-25

    8 10 11 12

    25

    36

    9

    M4

    1.7

    TS7-32

    12 14 15 16

    32

    41

    10

    M4

    1.7

    TS7-40

    14 16 18 19 20

    40

    50

    12

    M5

    1.7

    STS7-16

    3 4 5 6

    16

    24

    6

    M3

    0.7

    STS7-20

    5 6 8 10

    20

    30

    7

    M3

    0.7

    STS7-25

    8 10 11 12

    25

    38

    9

    M4

    1.7

    STS7-32

    12 14 15 16

    32

    41

    10

    M4

    1.7

    STS7-40

    14 16 18 19 20

    40

    50

    12

    M5

    1.7





    Model

    Rated Torque
    N·m

    Max.Torque
    N·m

    Max.Rotational Frequency
    rpm

    Moment of inertia
    kg·m2

    Mass
    g

    TS7-16

    0.3

    0.6

    23000

    3.1×10-7

    11

    TS7-20

    0.5

    1

    18000

    8.5×10-7

    20

    TS7-25

    1

    2

    14000

    2.6×10-6

    39

    TS7-32

    2

    4

    10000

    9.1×10-6

    71

    TS7-40

    5

    10

    8000

    9.1×10-6

    100

    STS7-16

    0.3

    0.6

    23000

    8.1×10-7

    28

    STS7-20

    0.5

    1

    18000

    2.2×10-6

    54

    STS7-25

    1

    2

    14000

    7.1×10-6

    100

    STS7-32

    2

    4

    10000

    2.4×10-6

    190

    STS7-40

    5

    10

    8000

    2.4×10-6

    210
