TS6C oldham coupling
An Oldham coupling has three discs, one coupled to the input, one coupled to the output, and a middle disc that is joined to the first two by tongue and groove.
hiddenValue
- Description
-
An Oldham coupling has three discs, one coupled to the input, one coupled to the output, and a middle disc that is joined to the first two by tongue and groove. The tongue and groove on one side is perpendicular to the tongue and groove on the other. The middle disc rotates around its center at the same speed as the input and output shafts. Its center traces a circular orbit, twice per rotation, around the midpoint between input and output shafts. Often springs are used to reduce backlash of the mechanism. An advantage to this type of coupling, as compared to two universal joints, is its compact size. The coupler is named for John Oldham who invented it in Ireland, in 1821, to solve a paddle placement problem in a paddle steamer design.
Features of TS6C oldham coupling:
1.Allows high parallel and angular misalignments
2.Zero backlash
3.High torsional stiffness and response
4.Simple configuration enable ease of assembly
5.Clamp type

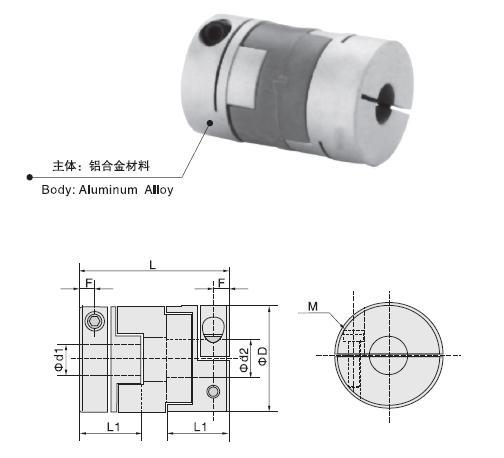

Model
Φ d1Φd2
Bore diameterΦD
L
F
L1
M
Wrench Torque
N·mTS6C-16
4 5 6
16
30
3.0
13
M2.5
0.7
TS6C-20
6 6.35 8
20
33
3.0
14
M2.5
1.7
TS6C-25
6 6.35 8
9.525 1025
39
3.8
17
M3
4.0
TS6C-32
8 9.525 10
11 12 1432
45
4.5
19
M4
7.0
TS6C-40
12 14
15 1640
50
7.0
23
M5
7.0
TS6C-50
14 15 16
18 19 2050
58
8.0
27
M6
15
TS6C-63
16 18 19
20 24 2563
71
10
33
M8
30
TS6C-70
25 28 30
32 3570
77
12
35
M8
35
Model
Rated Torque
（N·m）Max.Torque
（N·m）Max.Rotational Frequency
（rpm）Moment of inertia
kg·m2Static Torsioral Stiffness
N m/radParallel misalignment
mmAngular misalignment
Mass
gTS6C-16
0.7
1.4
9000
5.0×10-7
29
1.0
3.0
12
TS6C-20
1.6
3.2
7400
1.4×10-7
58
1.4
3.0
20
TS6C-25
3.0
6.0
5800
4.1×10-6
125
1.9
3.0
36
TS6C-32
5.5
11.0
4700
1.2×10-5
260
2.4
3.0
66
TS6C-40
9.0
18.0
3600
3.8×10-5
505
2.8
3.0
114
TS6C-50
19.0
38.0
3000
1.0×10-4
780
3.3
3.0
206
TS6C-63
33.0
66.0
2400
3.5×10-4
1200
3.8
3.0
454
TS6C-70
80
160
2200
2.1×10-4
1600
3.9
3.0
560
