TS3ZFD mini disc coupling

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors.

hiddenValue

  • Description
  • Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

    Features of TS3K mini disc coupling:

    1.High torque capacity and excellent response

    2.Zero backlash

    3.Stainless steel discs absorbs parallel ,angular and axial misalignments

    4.Identical clockwise and anticlockwise rotational characteristics

    5.Using keyway connect



    6.For servomotor,stepmotor connection

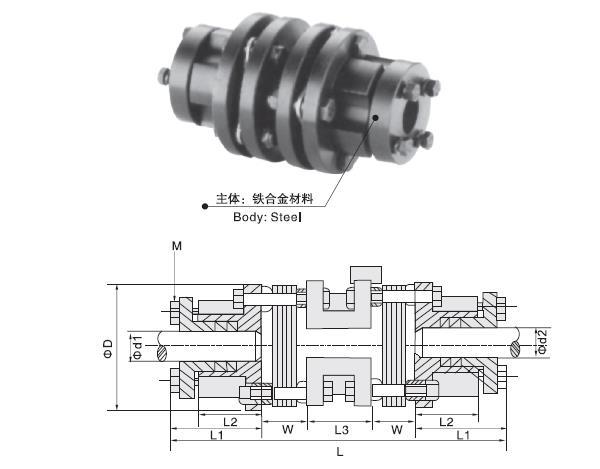

    Fundamental dimensions

    Model

    Φ d1Φd2 Bore diameter

    ΦD

    L

    W

    L1

    L2

    M

    Wrench Torque
    N·m

    TS3ZFD-68

    11 12 14
    15 16 18
    19 20 22

    68

    121

    7

    41.5

    26

    M5(4)

    4.0

    TS3ZFD-82

    14 15 16 19
    20 22 24 25
    28 30

    82

    128

    7

    44

    26

    M6(4)

    7.0

    TS3ZFD-94

    19 20 22 24
    28 30 35

    94

    148

    8

    51

    29

    M6(4)

    7.0

    TS3ZFD-104

    24 25 28 30
    35 38 40

    104

    164

    10

    57

    34

    M6(6)

    7.0

    TS3ZFD-126

    30 35 38 40
    48 50

    126

    201

    11

    70.5

    42

    M8(4)

    15.0

    TS3ZFD-144

    35 38 40
    42 45 48
    50 55 58

    144

    228

    12

    79

    48

    M8(6)

    15.0

    Parameters



    Model

    Rated Torque
    N·m

    Max Torque
    N·m

    Max Rotational Frequency
    rpm

    Moment of inertia
    kg·m2

    Static Torsioral Stiffness
    N m/rad

    Parallel misalignment
    mm

    Angular misalignment

    Axial misalignment
    mm

    重量
    Mass
    g

    TS3ZFD-68

    55

    110

    4500

    0.71×10-3

    15×10-3

    0.04

    2

    ±1.5

    1078

    TS3ZFD-82

    80

    160

    4500

    1.85×10-3

    44×10-3

    0.04

    2

    ±1.5

    1870

    TS3ZFD-94

    150

    300

    4500

    3.62×10-3

    90×10-3

    0.04

    2

    ±1.5

    2640

    TS3ZFD-104

    220

    440

    4500

    5.8×10-3

    130×10-3

    0.04

    2

    ±1.5

    4630

    TS3ZFD-126

    350

    700

    4500

    13.1×10-3

    220×10-3

    0.04

    2

    ±1.5

    6390

    TS3ZFD-144

    500

    1000

    4500

    26.5×10-3

    380×10-3

    0.04

    2

    ±1.5

    9460
