  • TS3ZF disc coupling.jpg

TS3ZF disc coupling

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors.

Category

precision coupling

Support

086-0317-7773773

Related
Get quotes

hiddenValue

  • Description

  • Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

    Features of TS3ZF mini disc coupling:

    1.High torque capacity and excellent response

    2.Zero backlash

    3.Stainless steel discs absorbs parallel ,angular and axial misalignments

    4.Identical clockwise and anticlockwise rotational characteristics

    5.Using locking assemblies connect

    6.For servomotor,stepmotor connection

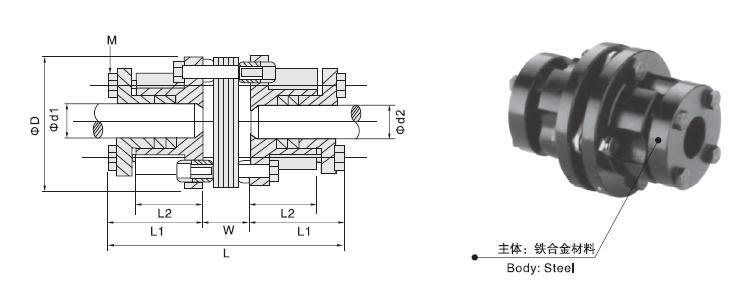

    Fundamental dimensions

    Model

    Φ d1Φd2

    Bore diameter

    ΦD

    L

    W

    L1

    L2

    M

    Wrench Torque
    N·m

    TS3ZF-68

    11 12 14
    15 16 18
    19 20 22

    68

    90

    7

    41.5

    26

    M5(4)

    4.0

    TS3ZF-82

    14 15 16 19
    20 22 24 25
    28 30 35

    82

    95

    7

    44

    26

    M6(4)

    7.0

    TS3ZF-94

    19 20 22 24
    28 30 35

    94

    110

    8

    51

    29

    M6(4)

    7.0

    TS3ZF-104

    24 25 28 30
    35 38 40

    104

    124

    10

    57

    34

    M6(6)

    7.0

    TS3ZF-126

    30 35 38 40
    42 45 48 50

    126

    152

    11

    70.5

    42

    M8(4)

    15.0

    TS3ZF-144

    35 38 40
    42 45 48
    50 55 58

    144

    170

    12

    79

    48

    M8(6)

    15.0

    TS3ZF-168

    38 40 45 48 50
    55 58 60 65

    168

    176

    14

    81

    58

    M8(6)

    15.0

    Parameters

    Model

    Rated Torque
    （N·m）

    Max Torque
    （N·m）

    Max Rotational Frequency
    （rpm）

    Moment of inertia
    kg·m2

    Static Torsioral Stiffness
    N m/rad

    Parallel misalignment
    mm

    Angular misalignment

    Axial misalignment
    mm

    Mass
    g

    TS3ZF-68

    55

    110

    4500

    0.39×10-3

    31×103

    0.02

    1

    ±1.0

    550

    TS3ZF-82

    80

    160

    4500

    0.96×10-3

    89×103

    0.02

    1

    ±1.0

    1100

    TS3ZF-94

    150

    300

    4500

    1.85×10-3

    180×103

    0.02

    1

    ±1.0

    1540

    TS3ZF-104

    220

    440

    4500

    2.96×10-3

    265×103

    0.02

    1

    ±1.0

    2310

    TS3ZF-126

    350

    700

    4500

    7.1×10-3

    450×103

    0.02

    1

    ±1.0

    3740

    TS3ZF-144

    500

    1000

    4500

    14.3×10-3

    790×103

    0.02

    1

    ±1.0

    5390

    TS3ZF-168

    1000

    1270

    4500

    26.3×10-3

    1100×103

    0.02

    1

    ±1.0

    15000
