TS3ZD mini disc coupling

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors.

Category

precision coupling

Support

086-0317-7773773

Get quotes

hiddenValue

Description

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

Features of TS3ZD mini disc coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Stainless steel discs absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Using locking assemblies connection

6.For servomotor,stepmotor connection

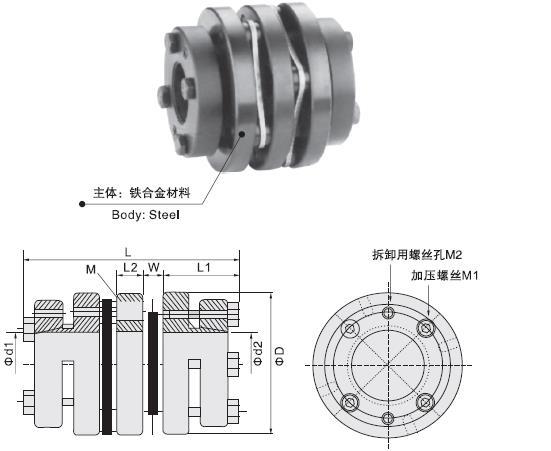

Fundamental dimensions

Model	Φ d1Φd2 Bore diameter	ΦD	L	L1	L2	W	M	M1	M2
TS3ZD-70	18 19 20 22 24 25 28 30 32 35	70	80	29	8	7.0	M6	4-M6	2-M6
TS3ZD-80	22 24 25 28 30 32 35	80	88	31	10	8.0	M8	4-M6	2-M6
TS3ZD-90	28 30 32 35 38 40 42 45 48	90	88	31	10	8.0	M8	6-M6	3-M6
TS3ZD-100	32 35 38 40 42 45 48 50 52 55 60	100	88	31	10	8.0	M8	6-M6	3-M6
TS3ZD-126	38 40 42 45 48 50 52 55 60 62 65	126	107	35.5	14	11	M10	6-M6	3-M6
TS3ZD-144	45 48 50 52 55 60 62 65 70 75	144	122	42	14	12	M12	6-M8	3-M8

Parameters

Model	Rated Torque （N·m）	Max.Torque （N·m）	Max.Rotational Frequency （rpm）	Moment of inertia kg·m2	Static Torsioral Stiffness N m/rad	Parallel misalignment mm	Angular misalignment	Axial misalignment mm	Mass g
TS3ZD-70	70	140	13000	0.81×10^-3	30×10³	0.02	1	±1.0	1150
TS3ZD-80	125	250	11000	1.32×10^-3	32×10³	0.02	1	±1.0	1580
TS3ZD-90	180	360	10000	2.56×10^-3	68×10³	0.02	1	±1.0	1980
TS3ZD-100	280	560	8000	3.68×10^-3	79×10³	0.02	1	±1.0	2260
TS3ZD-126	450	900	10000	7.95×10^-3	216×10³	0.02	1	±1.0	4300
TS3ZD-144	760	1520	8000	16.7×10^-3	380×10³	0.02	1	±1.0	6200

keywords：

mini disc coupling
diaphragm coupling
locking assemblies coupling
small shaft coupling
double plate springs coupling
