TS3KD mini disc coupling

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors.

Category

precision coupling

Support

086-0317-7773773

Related
Get quotes

hiddenValue

  • Description

  • Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

    Features of TS3KD mini disc coupling:

    1.High torque capacity and excellent response

    2.Zero backlash

    3.Stainless steel discs absorbs parallel ,angular and axial misalignments

    4.Identical clockwise and anticlockwise rotational characteristics

    5.Using keyway connencion

    6.For servomotor,stepmotor connection

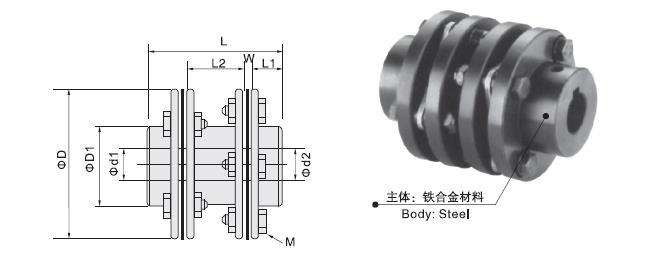

    Fundamental dimensions



    Model

    Φ d1Φd2
    Bore diameter

    ΦD

    ΦD1

    L

    L1

    L2

    W

    M

    TS3KD-56

    8 10 11
    12 14 16
    18 19 20

    56

    32

    74

    20

    24

    5

    M5

    TS3KD-68

    11 14 16
    19 20 24
    25 28 30 35

    68

    40

    86

    25

    24

    6

    M6

    TS3KD-82

    14 16 18
    19 20 24
    25 28 30 35

    82

    54

    98

    30

    26

    6

    M6

    TS3KD-94

    14 16 18 19
    20 24 25 28
    30 35 38

    94

    58

    106

    30

    30

    8

    M8

    TS3KD-104

    19 22 24
    25 30 35
    38 40 42

    104

    68

    120

    35

    30

    10

    M8

    TS3KD-126

    22 24 30
    35 38 40
    42 42 50

    126

    78

    140

    40

    38

    11

    M10

    TS3KD-144

    30 34 37
    40 45 50
    55 60

    144

    88

    160

    45

    46

    12

    M12

    Parameters





    Model

    Φ d1Φd2
    Bore diameter

    ΦD

    ΦD1

    L

    L1

    L2

    W

    M

    TS3KD-56

    8 10 11
    12 14 16
    18 19 20

    56

    32

    74

    20

    24

    5

    M5

    TS3KD-68

    11 14 16
    19 20 24
    25 28 30 35

    68

    40

    86

    25

    24

    6

    M6

    TS3KD-82

    14 16 18
    19 20 24
    25 28 30 35

    82

    54

    98

    30

    26

    6

    M6

    TS3KD-94

    14 16 18 19
    20 24 25 28
    30 35 38

    94

    58

    106

    30

    30

    8

    M8

    TS3KD-104

    19 22 24
    25 30 35
    38 40 42

    104

    68

    120

    35

    30

    10

    M8

    TS3KD-126

    22 24 30
    35 38 40
    42 42 50

    126

    78

    140

    40

    38

    11

    M10

    TS3KD-144

    30 34 37
    40 45 50
    55 60

    144

    88

    160

    45

    46

    12

    M12
