TS3K disc coupling

浏览量
Weight:
0.00
Release time
2019/01/11 11:17
Inquiry
Booking
Application
Sample
Description

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

Features of TS3K mini disc coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Stainless steel discs absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Using keyway connect

6.For servomotor,stepmotor connection

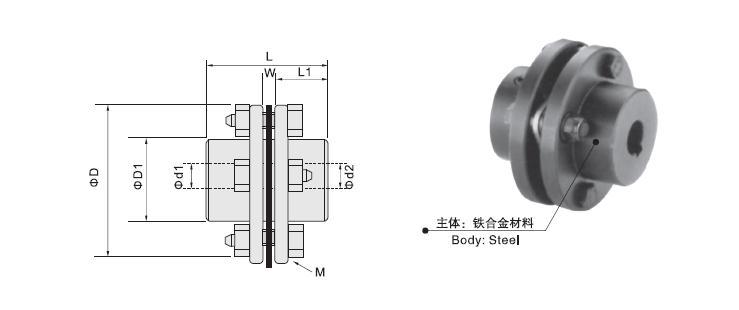

Fundamental dimensions

Model

Φ d1Φd2
 Bore diameter

ΦD

ΦD1

L

L1

W

M

TS3K-56

8 10 11
12 14 16
18 19 20

56

32

45

20

5

M5

TS3K-68

11 14 16
19 20 24
25 28 30 35

68

40

56

25

6

M6

TS3K-82

14 16 18
19 20 24
25 28 30 35

82

54

56

30

6

M6

TS3K-94

14 16 18
19 20 24 25
28 30 35 38

94

58

68

30

8

M8

TS3K-104

19 22 24
25 30 35
38 40 42

104

68

80

35

10

M8

TS3K-126

22 24 30
35 38 40
42 42 50

126

78

91

40

11

M10

TS3K-144

30 34 37
40 45 50
55 60

144

98

102

45

12

M12

Parameters

Model

Rated Torque
N·m

Max Torque
N·m

Max Rotational Frequency
rpm

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Axial misalignment
mm

Mass
g

TS3K-56

25

50

20000

0.1×10-3

15×103

0.02

1

±0.5

300

TS3K-68

55

110

15000

0.28×10-3

28×103

0.02

1

±0.8

500

TS3K-82

80

160

14000

0.85×10-3

81×103

0.02

1

±1.0

1000

TS3K-94

170

340

11000

1.5×10-3

165×103

0.02

1

±1.0

1400

TS3K-104

240

480

9800

2.4×10-3

240×103

0.02

1

±1.0

2100

TS3K-126

420

840

8000

6.3×10-3

410×103

0.02

1

±1.0

3400

TS3K-144

700

1400

6800

9.2×10-3

760×103

0.02

1

±1.0

4900
