TS3FD mini discflange coupling
Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.
Features of TS3FD mini disc coupling:
1.High torque capacity and excellent response
2.Zero backlash
3.Stainless steel discs absorbs parallel ,angular and axial misalignments
4.Identical clockwise and anticlockwise rotational characteristics
5.Clamp type

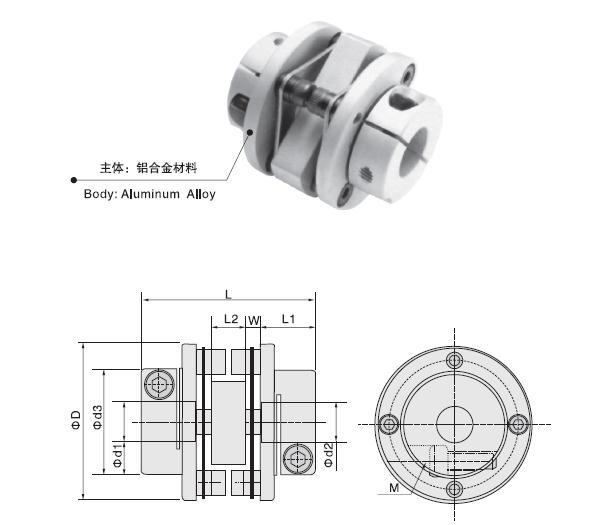

Fundamental dimensions
|
Model |
Φ d1Φd2 Bore diameter |
ΦD |
L |
ΦD3 |
W |
L1 |
L2 |
M |
Wrench Torque |
|
TS3D-34 |
6 7 8 |
34 |
37 |
21.6 |
3 |
12 |
7 |
M3 |
1.5 |
|
TS3D-39 |
8 9 10 |
39 |
47 |
24 |
3.5 |
14.5 |
8 |
M4 |
3.4 |
|
TS3D-44 |
10 11 |
44 |
47 |
29.5 |
4 |
15 |
9 |
M4 |
3.4 |
|
TS3D-56 |
14 16 |
56 |
61 |
38.0 |
5 |
20 |
11 |
M5 |
7.0 |
|
TS3D-68 |
15 19 20 |
68 |
74 |
46.0 |
6 |
24 |
14 |
M6 |
14.0 |
|
TS3D-82 |
20 24 25 |
82 |
98 |
56.0 |
8 |
30 |
22 |
M8 |
25.0 |
Parameters
|
Model |
Rated Torque |
Max Torque |
Max Rotational Frequency |
Moment of inertia |
Static Torsioral Stiffness |
Parallel misalignment |
Angular misalignment |
Axial misalignment |
Mass |
|
TS3D-34 |
3.8 |
7.6 |
6000 |
6.5×10-6 |
1300 |
0.02 |
2 |
±0.3 |
46 |
|
TS3D-39 |
6.7 |
13.4 |
6000 |
12.5×10-6 |
2000 |
0.02 |
2 |
±0.3 |
75 |
|
TS3D-44 |
9.7 |
19.4 |
6000 |
24.5×10-6 |
2800 |
0.02 |
2 |
±0.3 |
98 |
|
TS3D-56 |
24 |
48 |
6000 |
82.5×10-6 |
4000 |
0.02 |
2 |
±0.3 |
194 |
|
TS3D-68 |
40 |
80 |
6000 |
225×10-4 |
6200 |
0.02 |
2 |
±0.3 |
376 |
|
TS3D-82 |
85 |
170 |
6000 |
985×10-4 |
8300 |
0.02 |
2 |
±0.3 |
640 |
