Product :

TS3F mini discflange cpupling

浏览量
Weight:
0.00
Release time
2019/01/11 11:16
Inquiry
Booking
Application
Sample
Description

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

Features of TS3F mini disc coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Stainless steel discs absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Clamp type

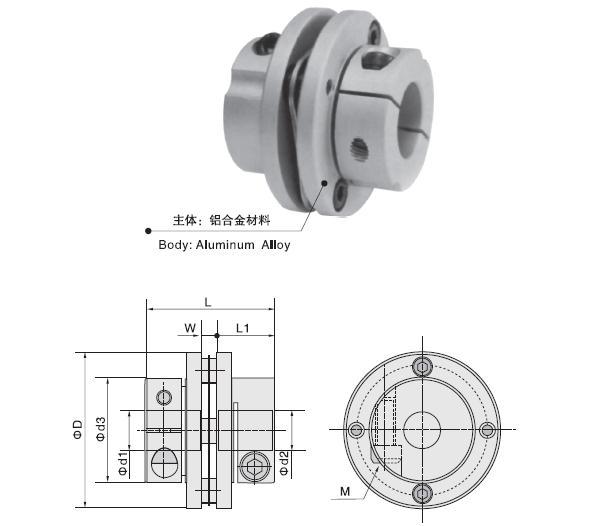

Fundamental dimensions

Model

Φ d1Φd2
Bore diameter

ΦD

L

L1

M

Wrench Torque
N·m

TS3F-34

6 7 8

34

27

12

M3

1.5

TS3F-39

8 10 11 12

39

34.5

15

M4

3.4

TS3F-44

10 11
12 14

44

34

15

M4

3.4

TS3F-56

14 16
19 20

56

45

20

M5

7.0

TS3F-68

15 19 20
22 24 25

68

54

24

M6

14.0

TS3F-82

20 24 25
28 30

82

68

30

M8

25.0

Parameters



Model

Rated Torque
N·m

Max Torque
N·m

Max Rotational Frequency
rpm

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Angular misalignment

Axial misalignment
mm

Mass
g

TS3F-34

3.8

7.6

6000

3.8×10-6

1500

1

±0.15

38

TS3F-39

6.7

13.4

6000

7.2×10-6

2500

1

±0.15

54

TS3F-44

9.7

19.4

6000

14.5×10-6

3000

1

±0.15

84

TS3F-56

24

48

6000

48.5×10-6

4200

1

±0.15

132

TS3F-68

40

80

6000

126×10-4

6500

1

±0.15

232

TS3F-82

85

170

6000

565×10-4

8600

1

±0.15

420
