Product :

TS3 mini disc coupling

浏览量
Weight:
0.00
Release time
2019/01/11 11:16
Inquiry
Booking
Application
Sample
Description

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

Features of TS3 mini disc coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Stainless steel discs absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Clamp type

6.For servomotor,stepmotor connection

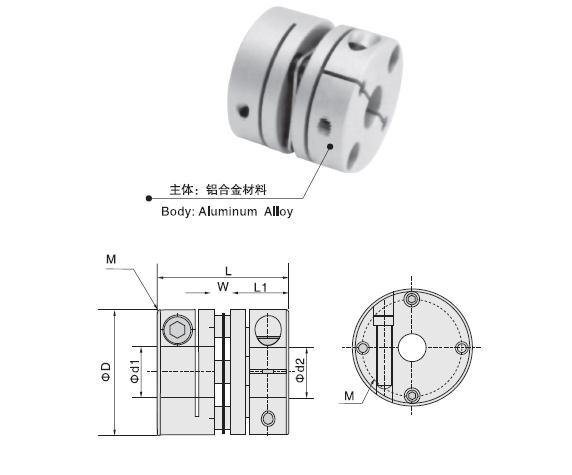

Fundamental dimensions

Model

Φ d1Φd2

 Bore diameter

ΦD

L

F





L1

M

Wrench Torque
N·m



TS3-26

5 6 8
9.525 10

26

25.5

2.5

11.5

M3

1.5



TS3-34

8 9.525 10
11 12 14

34

31

3.1

14.1

M4

1.5



TS3-39

10 11 12
14 15 16

39

34.1

4.1

15.0

M4

2.5



TS3-44

11 12 14
15 16 19

44

34.5

4.5

15.0

M4

2.5



TS3-56

14 15 16 19
20 22 24

56

45.0

5.0

20.0

M5

7.0



TS3-68

19 20 22
24 30 35

68

54.0

6.0

24.0

M6

12



TS3-82

24 28 30
35 38 40

82

68.0

8.0

30.0

M8

16



Parameters





Model

Rated Torque
N·m

Max Torque
N·m

Max Rotational Frequency
rpm

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Mass
g

TS3-26

1.4

2.8

10000

1.8×10-6

690

1

±0.2

24

TS3-34

2.8

5.6

10000

7.2×10-6

1650

1

±0.2

46

TS3-39

5.8

11.6

10000

1.8×10-5

2500

1

±0.2

78

TS3-44

8.7

17.4

10000

2.5×10-5

2900

1

±0.2

96

TS3-56

25

50

10000

1.0×10-5

8400

1

±0.2

206

TS3-68

55

110

10000

1.9×10-4

11500

1

±0.2

366

TS3-82

80

160

10000

7.0×10-4

14550

1

±0.2

710
