  • TS2 curved jaw coupling.jpg

TS2 curved jaw coupling

The Jaw Type couplings from Tanso are offered in the industry’s largest variety of stock bore/keyway combinations.

hiddenValue

  • Description
  • The Jaw Type couplings from Tanso are offered in the industry’s largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications.

    Features of TS2 curved jaw coupling:

    1.Coupling assembled by pressing a polyrethane sleeve into hubs on both sides

    2.Can absorb vibration,parallel,angular and axial misalignments

    3.Resistance to oil and electrical insulation

    4.Identical clockwise and anticlockwise ratational charateristics

    5.Two different hardness sleeves are avaible



    6.Set screw type

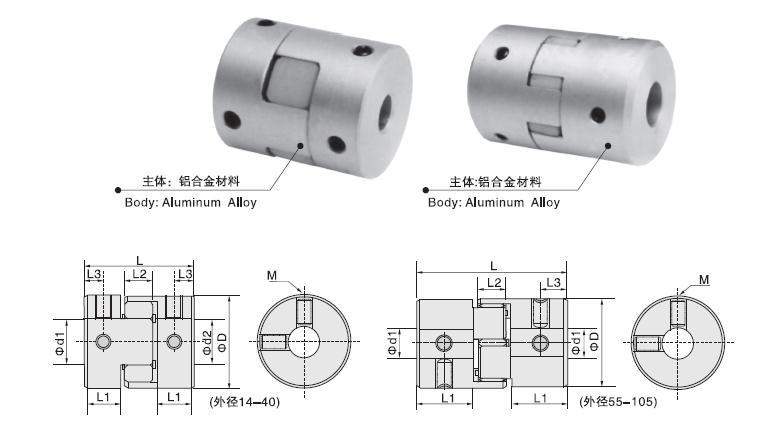

    Model

    Φ d1Φd2
    Bore diameter

    ΦD

    L

    L1





    L2

    S

    L3

    M

    Wrench Torque
    N·m



    TS2-14

    2 3 4
    5 6 7

    14

    22

    7

    6

    1.0

    3.5

    M3

    1.0



    TS2-20

    4 5 6
    7 8 10

    20

    30

    10

    8

    1.0

    5.0

    M4

    1.3



    TS2-25

    4 5 6 6.35 8
    10 12 14 16

    25

    34

    11

    10

    1.0

    5.0

    M4

    1.5



    TS2-30

    8 9.525 10
    12 14 16

    30

    35

    11

    10

    1.5

    5.0

    M4

    1.7



    TS2-40S

    14 16 19
    20 22 24

    40

    55

    19.5

    12

    2.0

    10

    M5

    4



    TS2-40

    14 15 18 19
    20 22 24

    40

    66

    25

    12

    2.0

    10

    M5

    4



    TS2-55

    14 16 19
    24 25 28

    55

    70

    30

    14

    2.0

    10

    M5

    4



    TS2-65

    19 20 24 28
    30 35 38

    65

    90

    35

    15

    2.5

    15

    M8

    15



    TS2-80

    24 28 30 35
    38 40 45

    80

    114

    45

    18

    3.0

    15

    M8

    15



    TS2-95

    30 35 38 40
    45 50 55

    95

    126

    50

    20

    3.0

    20

    M8

    15



    TS2-105

    35 40 45
    50 55 60

    105

    140

    56

    21

    3.5

    20

    M8

    15







    Model

    Rated Torque
    N·m

    Max.Torque
    N·m

    Max.Rotational Frequency
    rpm

    Moment of inertia
    kg·m2

    Static Torsioral Stiffness
    N m/rad

    Parallel misalignment
    mm

    Angular misalignment

    Axial misalignment
    mm

    Mass
    g

    TS2-14

    1.1

    2.2

    19000

    5.9×10-4

    46

    0.02

    1.0

    +0.6
    0

    26

    TS2-20

    2.8

    5.6

    17000

    6.7×10-4

    55

    0.02

    1.0

    +0.6
    0

    37

    TS2-25

    6.0

    12.0

    16000

    7.6×10-4

    63

    0.02

    1.0

    +0.6
    0

    42

    TS2-30

    6.5

    13.0

    15000

    8.5×10-4

    72

    0.02

    1.0

    +0.6
    0

    46

    TS2-40S

    32

    64

    13000

    9.4×10-4

    500

    0.02

    1.0

    +0.8
    0

    140

    TS2-40

    32

    64

    13000

    1.1×10-3

    550

    0.02

    1.0

    +0.8
    0

    148

    TS2-55

    46

    92

    10500

    4.4×10-3

    1500

    0.02

    1.0

    +0.8
    0

    350

    TS2-65

    109

    218

    8300

    9.0×10-3

    2800

    0.02

    1.0

    +0.8
    0

    572

    TS2-80

    135

    270

    7000

    1.8×10-2

    3500

    0.02

    1.0

    +1.0
    0

    950

    TS2-95

    260

    520

    6000

    2.0×10-2

    4600

    0.02

    1.0

    +1.0
    0

    1800

    TS2-105

    430

    860

    5500

    3.2×10-2

    5800

    0.02

    1.0

    +1.0
    0

    2400
