TS1Z bellows coupling

A bellows coupling is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other.

hiddenValue

  • Description
  • A bellows coupling is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other. This design utilizes a single piece of material and becomes flexible by removal of material along a spiral path resulting in a curved flexible beam of helical shape.

    Features of TS1Z bellows coupling:

    1.Using locking assemblies connect

    2.Zero backlash

    3.Spring action bellows configuration absorbs parallel ,angular and axial misalignments

    4.Identical clockwise and anticlockwise rotational characteristics

    5.Material:stainless steel

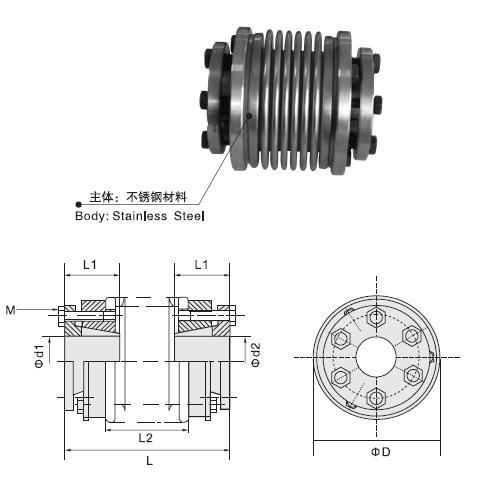

    Model

    Φ d1Φd2
    Bore diameter

    ΦD

    L

    L1

    L2

    M

    Wrench Torque
    N·m

    TS1Z-40

    10 11 12
    14 15 16

    40

    55

    19

    24

    M4

    3.0

    TS1Z-55

    11 12 14
    16 19 20

    55

    65

    22

    31

    M4

    6.0

    TS1Z-65

    14 16 19
    24 25 28

    65

    76

    27

    37

    M5

    8.0

    TS1Z-82

    19 20 24
    28 30 35 38

    82

    88

    32

    41

    M5

    10.0





    Model

    Rated Torque
    N·m

    Max.Torque
    N·m

    Max.Rotational Frequency
    rpm

    Moment of inertia
    kg·m2

    Static Torsioral Stiffness
    N m/rad

    Parallel misalignment
    mm

    Angular misalignment

    Axial misalignment
    mm

    Mass
    g

    TS1Z-40

    13

    26

    8000

    9×10-5

    1.5×10-4

    0.15

    2

    1.5

    210

    TS1Z-55

    28

    56

    6000

    2.9×10-4

    3.5×10-4

    0.2

    2

    1.5

    400

    TS1Z-65

    56

    112

    5000

    4.6×10-4

    6.8×10-4

    0.25

    2

    1.5

    790

    TS1Z-82

    120

    240

    4500

    1.1×10-3

    1.2×10-4

    0.28

    2

    1.5

    1210
