Product :

TS1BC bellows coupling

浏览量
Weight:
0.00
Release time
2019/01/11 11:14
Inquiry
Booking
Application
Sample
Description

A bellows coupling is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other. This design utilizes a single piece of material and becomes flexible by removal of material along a spiral path resulting in a curved flexible beam of helical shape.

Features of TS1 bellows coupling:

1.No gap,high torque,anti-oil and anti-corrosion resistance

2.Identical clockwise and anticlockwise ratational characteristics

3.Absorb vibration,parallel,angular and axial misalignment

4.High temperatures,high torque capacity and excellent response

5.Keep constant work under misalignment

6.Stainless steel,good performence

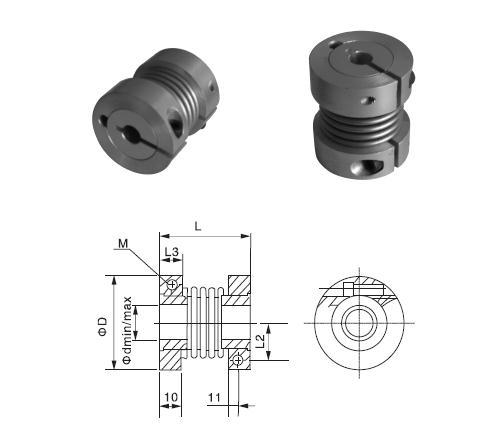

Model

Φ d1Φd2
Bore diameter

ΦD

L

L0

Bolt

L1

L2

L3

M

TS1BC-44

8 10 12 14 16 18 20

44

53

17

7

14.5

16

M5

TS1BC-54

12 14 16 20 22 25

54

68

20

9

20.5

18

M6

TS1BC-74

16 18 20 22 25 28 30 36

74

78

22

11

27.5

20

M8

TS1BC-84

18 20 25 28 30 35 38 40 45

84

106

26

12.5

35

22

M8



Model

Rated Torque
N·m

Max.Torque
N·m

Max.Rotational Frequency
rpm

Parallel misalignment
mm

Angular misalignment

Axial misalignment
mm

Wrench Torque
N·m

TS1BC-44

30

60

9000

0.3

0.5

2.8

10

TS1BC-54

45

90

7000

0.3

0.6

2.8

16

TS1BC-74

120

240

5500

0.4

0.8

2.8

24

TS1BC-84

180

360

4000

0.4

0.8

2.8

45
