Z20 type locking device
Tanso Shaft Locking Devices connect hubs solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust.
hiddenValue
- Description
-
Tanso Shaft Locking Devices connect hubs solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust. This mechanical interference fit utilizes screw tension in the Shaft Locking Device, converted into radial pressure via an inclined plane. This pressure expands the Shaft Locking Device to eliminate the gap between the hub and the shaft. The Shaft Locking Device uses the friction bond between the Shaft Locking Device and the shaft/hub to create a zero backlash connection. This connection is easily releasable to remove the mechanical interference fit.
Tanso Shaft Locking Devices expand to fill the gap between the shaft and hub, allowing for easy installation and removal, saving time over traditional interference fit techniques. The contact pressures created using a Shaft Locking Device can be greater than traditional interference fit pressures, allowing for more torque to be transmitted or shorter hubs to be used. The easy installation also allows the hub to be positioned more accurately on the shaft, and can facilitate angular timing of the hub.
Easy assembly and disassembly
Both actions take place by locking and unlocking the clamping screws with common tools.
The use of a torque wrench is only necessary when a more precise torque is required.
Superior holding power
The action of the clamping cones creates shaft clamping torque superior to a normal keyed hub.
Overload protection
When the pre-set torque is exceeded locking device will slip, preventing the connected elements from being broken.
Note: Locking units are not friction couplings, so excessive slip will cause damage.
Easy adjustment
Combining the locking device design of smooth cone action with superior holding power, the hub can be clamped at any position along a shaft, eliminating the need for lock washers, spacers , stop rings, etc.
Specific product description

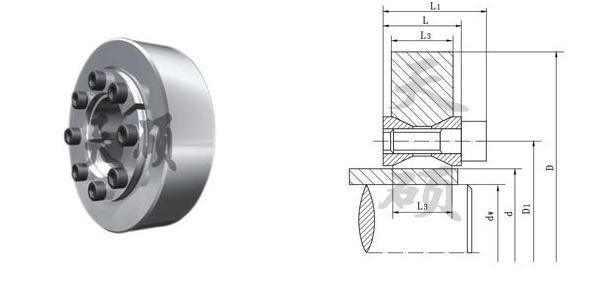

Dimensions（mm）
Rated load
Hexagon bolt
Mass
kgd
dw
D
D1
L4
L
L3
Torque
Mt
kNAxial force
Ft
kN．md1
n
MA
N·m25
18
2060
37.5
27.5
20
17
0.190
0.25521
25M6×18
9
17
0.37
30
20
22
2465
42.5
27.5
20
17
0.205
0.270
0.34020
24
28M6×18
9
17
0.42
35
25
28
3072
47.5
27.5
20
17
0.365
0.490
0.58529
35
39M6×18
12
17
0.48
40
30
32
34
3578
52.5
27.5
20
17
0.555
0.590
0.710
0.77037
37
42
44M6×18
15
17
0.54
45
35
36
3892
60
33.5
24
20
0.960
1.030
1.20055
57
63M8×22
12
41
0.92
50
38
40
4298
65
33.5
24
24
1.010
1.160
1.32053
58
63M8×22
12
41
1.0
55
42
45
48105
70
33.5
24
24
1.330
1.590
1.88063
70
78M8×22
14
41
1.1
60
48
50
52110
75
33.5
24
24
1.600
1.780
1.89067
71
73M8×22
14
41
1.2
70
55
58
60138
90
39.5
28
24
2.930
3.370
3.690106
116
123M10×25
14
83
2.3
80
62
65
68
70145
100
39.5
28
24
3.140
3.570
4.020
4.350101
110
118
124M10×25
14
83
2.4
90
70
75
78160
110
39.5
28
24
4.090
4.890
5.420117
130
139M10×25
16
83
2.8
100
78
80
82
85180
122.5
47
33
26
5.980
6.370
6.490
7.160153
159
158
168M12×30
14
145
3.8
110
85
88
90
95190
132.5
47
33
26
6.180
6.800
7.240
8.380145
154
160
176M12×30
14
145
4.1
120
95
100
105205
142.5
47
33
26
8.250
9.450
10.740173
189
204M12×30
16
145
4.7
140
110
115
120230
165
52
38
34
12.860
14.440
16.140233
251
269M12×35
22
145
7.4
160
125
130
135
140260
185
52
38
34
17.130
18.990
20.940
23.000274
292
310
328M12×35
26
145
9.2
