Z17 type locking device

Tanso Shaft Locking Devices connect hubs solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust.

Category

locking device

Support

086-0317-7773773

Get quotes

hiddenValue

Description

Tanso Shaft Locking Devices connect hubs solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust. This mechanical interference fit utilizes screw tension in the Shaft Locking Device, converted into radial pressure via an inclined plane. This pressure expands the Shaft Locking Device to eliminate the gap between the hub and the shaft. The Shaft Locking Device uses the friction bond between the Shaft Locking Device and the shaft/hub to create a zero backlash connection. This connection is easily releasable to remove the mechanical interference fit.

Tanso Shaft Locking Devices expand to fill the gap between the shaft and hub, allowing for easy installation and removal, saving time over traditional interference fit techniques. The contact pressures created using a Shaft Locking Device can be greater than traditional interference fit pressures, allowing for more torque to be transmitted or shorter hubs to be used. The easy installation also allows the hub to be positioned more accurately on the shaft, and can facilitate angular timing of the hub.

Easy assembly and disassembly

Both actions take place by locking and unlocking the clamping screws with common tools.

The use of a torque wrench is only necessary when a more precise torque is required.

Superior holding power

The action of the clamping cones creates shaft clamping torque superior to a normal keyed hub.

Overload protection

When the pre-set torque is exceeded locking device will slip, preventing the connected elements from being broken.

Note: Locking units are not friction couplings, so excessive slip will cause damage.

Easy adjustment

Combining the locking device design of smooth cone action with superior holding power, the hub can be clamped at any position along a shaft, eliminating the need for lock washers, spacers , stop rings, etc.

Specific product description

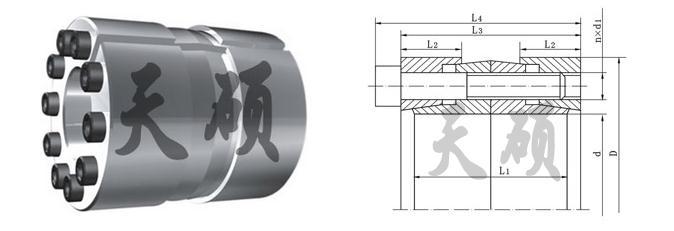

Z17A dimensions and parameter

Dimensions						Rated load		Hexagon bolt			Pressure between lock and the shaft pt N/mm²	Pressure between lock and hub pt N/mm²	Mass kg
d	D	L1	L2	L3	L4	Axial force Ft kN．m	Torque Mt kN	d1	n	MA N.M
mm
30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 120 130 140 150 160 170 180 190 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600	55 60 65 75 80 85 90 95 110 115 120 125 130 135 145 155 165 180 190 200 210 225 235 250 260 285 305 325 355 375 405 425 455 475 495 515 545 565 585 605 630 650 670 670 710	40 40 40 48 48 48 48 48 58 58 58 58 58 58 66 66 66 76 76 76 76 86 86 102 102 110 110 110 130 130 154 154 178 178 178 178 202 202 202 202 202 202 202 202 202	17 17 17 20 20 20 20 20 24 24 24 24 24 24 28 28 28 33 33 33 33 38 38 46 46 50 50 50 60 60 72 72 84 84 84 84 96 96 96 96 96 96 96 96 96	46 46 46 56 56 56 56 56 68 68 68 68 68 68 76 76 76 86 86 86 86 98 98 114 114 122 122 122 146 146 170 170 198 198 198 198 226 226 226 226 226 226 226 226 226	52 52 52 64 64 64 64 64 78 78 78 78 78 78 88 88 88 98 98 98 98 112 112 126 126 138 138 138 164 164 190 190 220 220 220 220 250 250 250 250 250 250 250 250 250	0.9 1.25 1.5 2.5 3 3.8 4.3 5.3 7.6 8.2 8.7 10.4 12.3 13.0 15.0 18.6 22.5 29.5 31.5 39.4 45 52.5 64.9 78.3 92.7 126 137.5 167.6 217 258.5 357.8 380 501 555 584 657 795 831 868 985 1024 1063 1181 1224 1266	60 71 75 112 120 138 143 162 219 219 219 240 274 274 301 338 376 451 451 526 563 619 722 825 928 1146 1146 1289 1552 1724 2236 2236 2784 2923 2923 3132 3617 3617 3617 3940 3940 3940 4219 4219 4219	M6 M6 M6 M8 M8 M8 M8 M8 M10 M10 M10 M10 M10 M10 M12 M12 M12 M12 M12 M12 M12 M14 M14 M14 M14 M16 M16 M16 M18 M18 M20 M20 M22 M22 M22 M22 M24 M24 M24 M24 M4 M24 M24 M24 M24	6 7 8 6 7 8 8 9 8 8 8 9 10 10 8 9 10 12 12 14 15 12 14 16 18 16 16 18 18 20 20 20 20 21 21 24 24 24 24 28 28 28 30 30 30	17 17 17 41 41 41 41 41 83 83 83 83 83 83 145 145 145 145 145 145 145 230 230 230 230 355 355 355 485 485 690 690 930 930 930 930 1200 1200 1200 1200 1200 1200 1200 1200 1200	132 135 124 136 132 138 127 132 143 134 125 133 139 132 121 123 126 121 112 122 123 112 124 113 121 126 115 120 113 117 120 113 115 115 109 111 108 103 99 104 100 96 100 96 92	85 93 90 98 100 108 102 108 110 105 101 109 116 112 98 103 108 101 95 106 108 96 107 95 103 107 100 105 97 102 102 97 97 97 93 96 92 88 85 91 88 84 88 84 83	0.5 0.6 0.7 1.1 1.2 1.3 1.4 1.5 2.6 2.8 2.9 3.1 3.2 3.3 4.5 4.9 5.3 7.3 7.8 8.2 8.7 11.6 12.2 16.7 17.4 22.3 24.1 25.8 38.2 40.6 58.6 61.8 85.0 87.2 93.4 97.5 128.9 134.1 1393 144.5 157.6 163.1 168.6 174.0 179.5

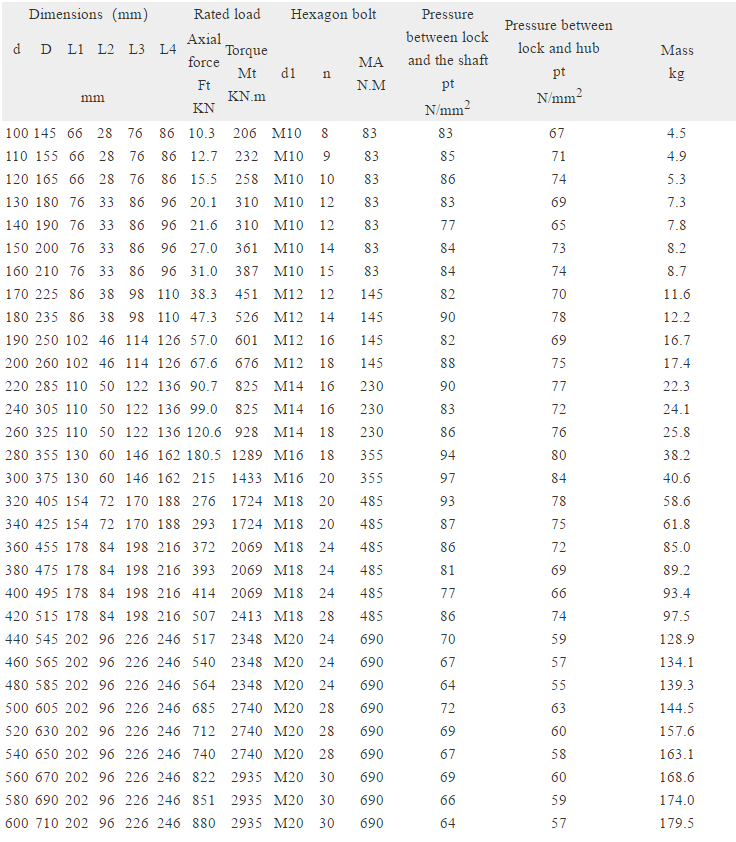

Z17B dimensions and parameter
