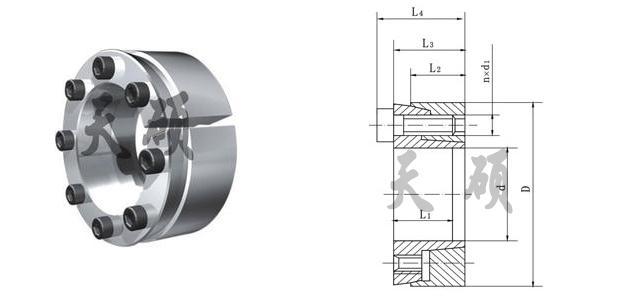

Z15 type locking device

Tanso Shaft Locking Devices connect hubs solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust.

Category

locking device

Support

086-0317-7773773

Get quotes

hiddenValue

Description

Tanso Shaft Locking Devices connect hubs solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust. This mechanical interference fit utilizes screw tension in the Shaft Locking Device, converted into radial pressure via an inclined plane. This pressure expands the Shaft Locking Device to eliminate the gap between the hub and the shaft. The Shaft Locking Device uses the friction bond between the Shaft Locking Device and the shaft/hub to create a zero backlash connection. This connection is easily releasable to remove the mechanical interference fit.

Tanso Shaft Locking Devices expand to fill the gap between the shaft and hub, allowing for easy installation and removal, saving time over traditional interference fit techniques. The contact pressures created using a Shaft Locking Device can be greater than traditional interference fit pressures, allowing for more torque to be transmitted or shorter hubs to be used. The easy installation also allows the hub to be positioned more accurately on the shaft, and can facilitate angular timing of the hub.

Easy assembly and disassembly

Both actions take place by locking and unlocking the clamping screws with common tools.

The use of a torque wrench is only necessary when a more precise torque is required.

Superior holding power

The action of the clamping cones creates shaft clamping torque superior to a normal keyed hub.

Overload protection

When the pre-set torque is exceeded locking device will slip, preventing the connected elements from being broken.

Note: Locking units are not friction couplings, so excessive slip will cause damage.

Easy adjustment

Combining the locking device design of smooth cone action with superior holding power, the hub can be clamped at any position along a shaft, eliminating the need for lock washers, spacers , stop rings, etc.

Specific product description

Dimensions（mm）

Rated load

Hexagon bolt

Pressure between lock and the shaft

pt
N/mm²

Pressure between lock and hub

pt
N/mm²

Mass
kg

Torque

Mt
kN

Axial force

Ft
kN．m

MA
N．m

20
22
24
25
28
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
110
120
130
140
150
160
170
180
190
200
220
240
260
280
300
320
340
360
380
400
420
440
460
480
500
520
540
560
580
600

47
47
50
50
55
55
60
65
75
80
85
90
95
110
115
120
125
130
135
145
155
165
180
190
200
210
225
235
250
260
285
305
325
355
375
405
425
455
475
495
515
545
565
585
605
630
650
670
690
710

20
20
20
20
20
20
20
20
24
24
24
24
24
29
29
29
29
29
29
33
33
33
38
38
38
38
43
43
51
51
55
55
55
65
65
77
77
89
89
89
89
101
101
101
101
101
101
101
101
101

17
17
17
17
17
17
17
17
20
20
20
20
20
24
24
24
24
24
24
28
28
28
33
33
33
33
38
38
46
46
50
50
50
60
60
72
72
84
84
84
84
96
96
96
96
96
96
96
96
96

23
23
23
23
23
23
23
23
28
28
28
28
28
34
34
34
34
34
34
38
38
38
43
43
43
43
49
49
57
57
61
61
61
73
73
85
85
99
99
99
99
113
113
113
113
113
113
113
113
113

29
29
29
29
29
29
29
29
36
36
36
36
36
44
44
44
44
44
44
50
50
50
55
55
55
55
63
63
71
71
77
77
77
91
91
105
105
121
121
121
121
137
137
137
137
137
137
137
137
137

0.34
0.38
0.41
0.43
0.60
0.64
0.90
1.03
1.80
2.3
2.9
3.2
3.8
6.0
6.4
6.8
8.1
9.6
10.1
11
14
17
23
24
30
35
41
51
61
72
99
108
130
170
200
275
290
385
430
450
545
660
690
720
880
915
950
1060
1100
1130

34
34
34
34
42
42
51
51
80
80
107
107
120
170
170
170
190
210
210
220
250
280
350
345
400
440
480
560
640
700
900
900
1000
1200
1350
1700
1700
2000
2200
2200
2500
3000
3000
3000
3400
3400
3400
3700
3700
3700

M6
M6
M6
M6
M6
M6
M6
M6
M8
M8
M8
M8
M8
M10
M10
M10
M10
M10
M10
M12
M12
M12
M12
M12
M12
M12
M14
M14
M14
M14
M16
M16
M16
M18
M18
M20
M20
M22
M22
M22
M22
M24
M24
M24
M24
M24
M24
M24
M24
M24

5
5
5
5
6
6
7
8
6
7
8
8
9
8
8
8
9
10
10
8
9
10
12
12
14
15
12
14
16
18
16
16
18
18
20
20
20
20
21
21
24
24
24
24
28
28
28
30
30
30

17
17
17
17
17
17
17
17
41
41
41
41
41
83
83
83
83
83
83
145
145
145
145
145
145
145
230
230
230
230
355
355
355
485
485
690
690
930
930
930
930
1200
1200
1200
1200
1200
1200
1200
1200
1200

242
220
202
194
207
194
194
194
200
210
218
200
208
225
210
197
209
219
207
190
194
198
190
177
192
193
176
194
177
190
198
181
188
178
184
189
178
181
180
171
186
181
173
166
186
179
172
178
172
166

121
121
114
114
124
124
133
140
144
156
169
160
171
173
166
159
171
183
176
154
162
170
158
150
166
170
151
168
150
162
168
157
165
152
160
160
152
152
153
147
161
154
148
143
162
155
150
156
152
148

0.25
0.24
0.27
0.29
0.31
0.30
0.33
0.37
0.62
0.67
0.72
0.77
0.82
1.50
1.59
1.67
1.76
1.84
1.90
2.58
2.79
3.00
4.10
4.37
4.63
4.90
6.56
6.90
9.27
9.7
12.3
13.3
14.3
21.4
22.7
32.2
34
47.2
49.5
51.8
54.2
72.0
74.9
77.0
80.8
88.1
91.1
94.2
97.3
100.3
