Z14 type locking device
Tanso Shaft Locking Devices connect hubs solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust.
hiddenValue
- Description
-
Tanso Shaft Locking Devices connect hubs solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust. This mechanical interference fit utilizes screw tension in the Shaft Locking Device, converted into radial pressure via an inclined plane. This pressure expands the Shaft Locking Device to eliminate the gap between the hub and the shaft. The Shaft Locking Device uses the friction bond between the Shaft Locking Device and the shaft/hub to create a zero backlash connection. This connection is easily releasable to remove the mechanical interference fit.
Tanso Shaft Locking Devices expand to fill the gap between the shaft and hub, allowing for easy installation and removal, saving time over traditional interference fit techniques. The contact pressures created using a Shaft Locking Device can be greater than traditional interference fit pressures, allowing for more torque to be transmitted or shorter hubs to be used. The easy installation also allows the hub to be positioned more accurately on the shaft, and can facilitate angular timing of the hub.
Easy assembly and disassembly
Both actions take place by locking and unlocking the clamping screws with common tools.
The use of a torque wrench is only necessary when a more precise torque is required.
Superior holding power
The action of the clamping cones creates shaft clamping torque superior to a normal keyed hub.
Overload protection
When the pre-set torque is exceeded locking device will slip, preventing the connected elements from being broken.
Note: Locking units are not friction couplings, so excessive slip will cause damage.
Easy adjustment
Combining the locking device design of smooth cone action with superior holding power, the hub can be clamped at any position along a shaft, eliminating the need for lock washers, spacers , stop rings, etc.
Specific product description

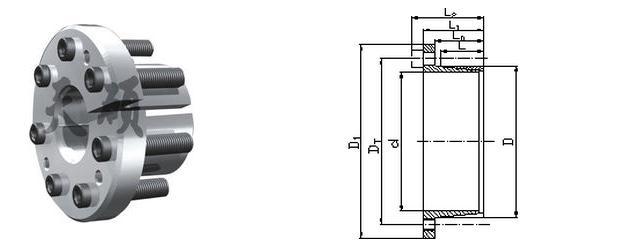

Dimensions
Rated load
Hexagon bolt
Pressure between lock and the shaft
pt
N/mm2Pressure between lock and hub
pt
N/mm2Mass（㎏）
d
D
Dr
D1
L
L0
L1
L2
Torque
Mt
KN·m
Axial force
Ft
kN
d1
n
MA
N·m
mm
14
25
33
42
16
20
26
30
64
9.20
M4
4
2.9
109
61
0.091
16
74
9.20
M4
4
2.9
95
61
0.082
18
82
9.20
M4
4
2.9
85
61
0.072
19
87
9.20
M4
4
2.9
80
61
0.068
20
30
39
50
16
20
26
31
150
15.00
M5
4
2.9
124
82
0.113
22
165
15.00
M5
4
6
113
82
0.110
24
180
15.00
M5
4
6
104
82
0.088
25
36
45
55
16
20
26
31
187
15.0
M5
4
6
100
69
0.144
28
210
15.0
M5
4
6
89
69
0.121
30
225
15.0
M5
4
6
83
69
0.105
32
42
51
62
16
20
28
33
240
15.0
M5
4
6
77
59
0.200
35
260
15.0
M5
4
6
71
59
0.173
36
270
15.0
M5
4
6
69
59
0.162
38
44
54
66
16
20
28
34
400
21.20
M6
4
10
93
80
0.182
40
48
58
70
16
20
28
34
425
21.20
M6
4
10
88
73
0.223
42
446
21.20
M6
4
10
83
73
0.191
45
55
67
82
20
25
35
43
875
38.90
M8
4
25
115
94
0.400
48
935
38.90
M8
4
25
107
94
0.350
50
62
74
89
20
25
35
43
974
38.90
M8
4
25
103
83
0.500
55
1070
38.90
M8
4
25
94
83
0.410
60
72
84
99
20
25
35
43
1165
38.90
M8
4
25
86
71
0.580
65
1265
38.90
M8
4
25
79
71
0.460
