Product :

TLW highly elastic coupling

浏览量
Category
Products
Weight:
0.00
Release time
2019/01/11 11:10
Inquiry
Booking
Application
Sample
Description

Widely used in internal combustion engine unit, frequency conversion unit, synchronous motor unit, reciprocating compressor unit, piston compressor unit.

Features of TLW highly elastic coupling:

  • High torque
  • High preformence in absorbing misalignments
  • Can eliminate vibration and impact due to misalignments
  • Lubrication free,easy to maintenance
  • Can be used in harsh environments (such as moisture, gravel, high temperature)

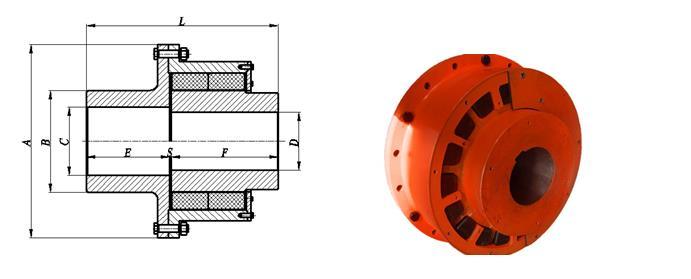

  • Type

    Nominal torque

    (Nm)

    Max speed (rpm)

    A

    (mm)

    B

    (mm)

    C/D

    (mm)

    E/F

    (mm)

    S

    (mm)

    L

    (mm)

    Mass (Kg)

    Moment of inertia (kg.)

    TLW265

    900

    4300

    265

    120

    80

    80

    4

    164

    26

    17.6

    TLW305

    1700

    3700

    305

    142

    95

    95

    4

    194

    45

    35.6

    TLW365

    3200

    3200

    365

    170

    115

    120

    4

    244

    76

    85.2

    TLW435

    4500

    2700

    435

    195

    130

    135

    6

    276

    117

    166.5

    TLW455

    7600

    2600

    455

    217

    145

    150

    6

    306

    135

    226.3

    TLW535

    11000

    2300

    535

    262

    175

    180

    6

    366

    230

    558.2

    TLW575

    17000

    2000

    575

    307

    205

    210

    8

    428

    303

    865.2

    TLW645

    26000

    1850

    645

    330

    220

    230

    8

    468

    450

    1564.2

    TLW695

    36000

    1750

    695

    350

    235

    245

    8

    498

    565

    2213.5

    TLW755

    48000

    1600

    755

    397

    265

    275

    10

    560

    715

    3282.2

    TLW805

    61000

    1500

    805

    427

    285

    285

    10

    580

    892

    4572.1

    TLW895

    88000

    1350

    895

    517

    345

    345

    10

    700

    1233

    7944.1

    TLW985

    115000

    1200

    985

    562

    375

    375

    12

    772

    1783

    13826.3

    TLW1065

    185000

    1100

    1065

    607

    405

    425

    12

    862

    2479

    22401

    TLW1155

    260000

    1000

    1155

    667

    445

    455

    12

    922

    3182

    33120
