JSA grid coupling
Tanso is pleased to be able to provide quality grid couplings covering a large number of industry standard sizes and lengths. The Tanso grid style coupling has proven itself in performance and popularity over a wide range of applications.
hiddenValue
- Description
-
Tanso is pleased to be able to provide quality grid couplings covering a large number of industry standard sizes and lengths. The Tanso grid style coupling has proven itself in performance and popularity over a wide range of applications.
Tanso’s grid style coupling design has demonstrated its ability to dampen vibration by as much as 30% and can cushion shock loads that could cause damage to both the driving and driven equipment. The tapered grid spring design absorbs impact energy by spreading the energy out over the full length of the grid spring thus reducing the magnitude of the torque spikes.
The Tanso design uses a curved hub tooth profile which creates a progressive contact with the flexible grid spring as the application torque increases. This feature provides a more effective and efficient transmission of power in properly aligned couplings.

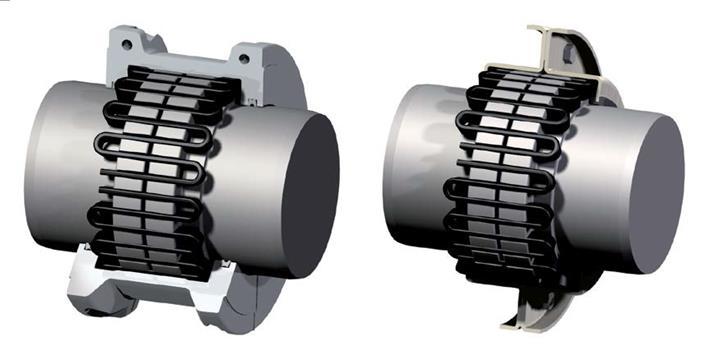

Tanso’s versatile design of industry standard hubs and grid springs for both horizontal and vertical cover styles allow Tanso couplings to be interchangeable with other industry standard grid couplings and components.
Proper grid coupling installation and maintenance can add to a longer coupling life. Grid spring replacement is simple and can be performed at a fraction of the cost and time of a complete coupling.
Principles
Positive protection against the damaging effects of shock loads, impact loads and vibration.

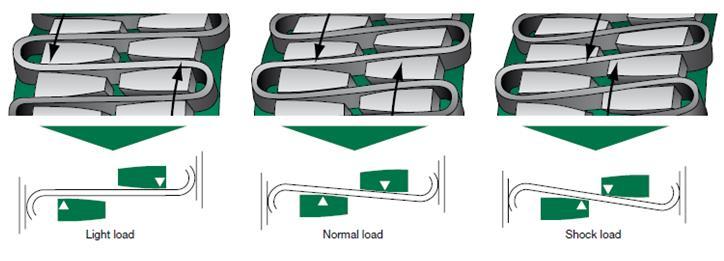

Tanso grid coupling is torsionally flexible. The circumferential flexibility is progressive due to the curved profile of the grooves – ‘state-of-the-art’ in resilient coupling design.

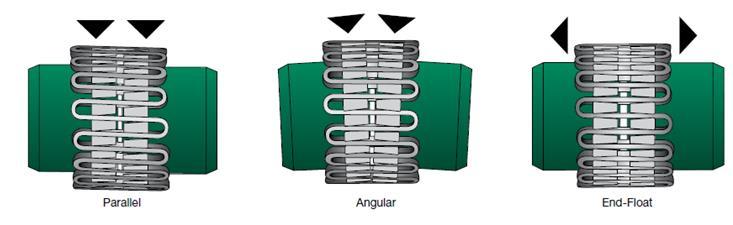

Accommodating Shaft Misalignment and End-Float
Tanso grid coupling will accommodate combinations of misalignment present at set-up or occurring during machine displacement, settlement, etc.
Limited End-Float kits are available on request.

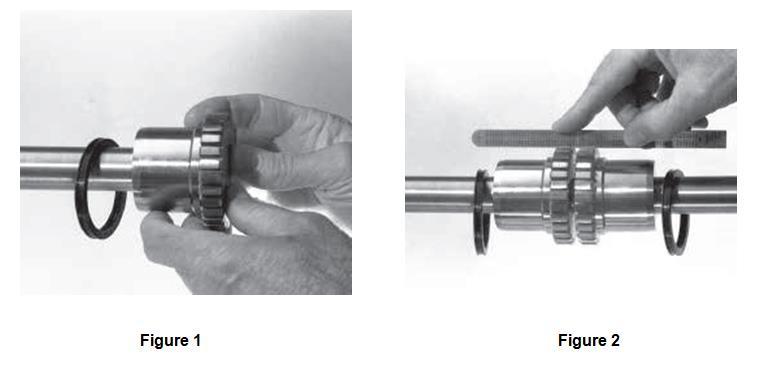

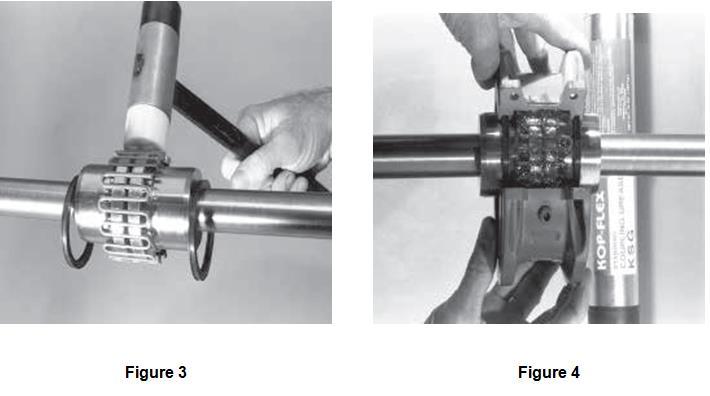

Installation
Product description

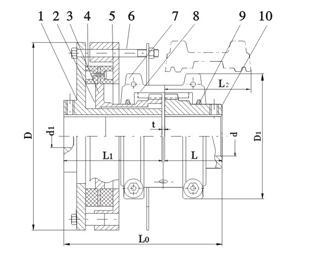

JSA controled torque grid coupling:
Provides adjustable slipping action to protect connected equipment from shock, jams or temporary overloads
Type
Nominal torque Tn/
N·m
Max speed
[n]/
r·min-1
Bore diameter
L1
L
L0
D
D1
L2
t
Mass
m/kg
d1max
d
JSA1
4～40
3600
25
20、22、24
79
48
130
178
100
48
3
6.174
25、28
JSA2
12.5～100
32
25、28
202
110
50
8.172
30、32、35
JSA3
20～160
35
25、28
51
133
232
117
63
11.532
30、32、35、38
40
JSA4
31.5～250
42
30、32、35、38
87
60
150
270
138
16.435
40、42、45、48
JSA5
50～450
45
35、38
97
63
163
301
151
76
21.974
40、42、45、48、50
JSA6
80～630
56
40、42、45、48、50、55、56
104
76
183
324
162
83
28.239
60、63
JSA7
140～1250
2800
65
45、48、50、55、56
114
89
206
362
194
92
41.042
60、63、65、70、71、75
JSA8
250～2000
2500
75
50、55、56
129
99
231
414
213
109
3
62.652
60、63、65、70、71、75
80、85
JSA9
450～3550
2100
90
70、71、75
144
121
270
491
251
147
5
100.788
80、85、90、95
100
JSA10
630～5600
1850
100
80、85、90、95
156
127
288
543
270
152
128.028
100、110
JSA11
1000～8000
1750
110
90、95
185
149
340
590
308
178
182.962
100、110、120、125
JSA12
1400～11200
1450
130
100、110、120、125
193
162
361
684
346
185
6
260.142
130、140、150
JSA13
2000～16000
1300
160
120、125
199
184
389
767
384
213
375.912
130、140、150
160、170、180
JSA14
2800～22400
1100
170
130、140、150
245
183
434
864
453
254
502.124
160、170、180
190、200
JSA15
4000～31500
950
200
160、170、180
250
198
454
989
501
652.398
190、200、220
JSA16
5600～45000
870
240
180
268
216
490
1066
566
267
869.864
190、200、220
240、250
JSA17
7100～63000
760
280
200、220
292
239
537
1161
630
1162.24
240、250、260
280
JSA18
10000～80000
720
300
240、250、260
297
259
562
1264
673
279
1426.922
280、300
JSA19
14000～100000
670
320
250、260
315
279
600
1377
757
1806.92
280、300、320
