NL gear coupling

浏览量
Category
gear coupling
Weight:
0.00
set
Release time
2019/01/11 11:05
Inquiry
Booking
Application
Sample
Description

Nylon gear flexible coupling is the latest product,it has been using by abroad,and it is designed by mechanical committee of Jinan Casting forging machinery institute.

Features of NL gear coupling:

1.Absorb parallel,angular and axial misalignments

2.Simple assembly and disassembly

3.Easy maintenance and low noise

4.High tansmission efficiency

5.Long service life

Type

Nominal torqueTn (N.M)

Max speedn (r/min)

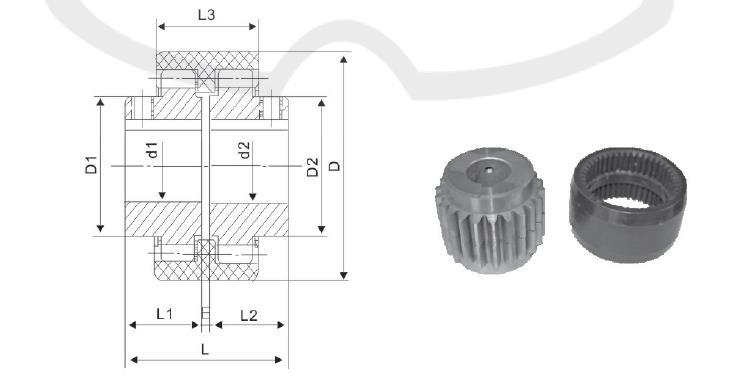

Fundamental dimensions (mm)

Max misalignment

Moment of inertia(KgC m 2 )

Mass(Kg )

Bore diameter
d1 d2

Bore length
L 1 L 2

L

D

D1

D2

E

L3

Axial

(mm)

Parallel

(mm)

Angular

α°

NL1

40

6000

6 8 10

16 20

25 32

37 45

55 69

40

26

4

34

2

±0.3

0.25

0.85

12 14

NL2

100

6000

10 12 14 22

25 32

42 52

57 71

91 111

42

36

4

40

2

±0.4

0.92

1.7

16 18 20 24

NL3

160

6000

20 22 24

52 62

113

133

66

44

4

46

2

±0.4

3.10

2.6

25 28

NL4

250

6000

28 30 32

62 82

129

169

83

58

4

48

2

±0.4

8.69

3.6

35 38

NL5

315

5000

32 35 38

82 112

169

229

93

68

4

50

3

±0.4

14.28

5.5

40 42

NL6

400

5000

40 42 45

82 112

230

100

68

4

52

3

±0.4

18.34

6.8

48

NL7

630

3600

45 48 50

82 112

229

115

80

4

60

3

±0.6

56.5

9.8

55

NL8

1250

3600

48 50 55

112 142

229

289

140

96

4

72

3

±0.6

98.55

26.5

60 63 65

NL9

2000

2000

60 63 65

142 172

295

351

175

124

6

93

4

±0.7

370.5

37.6

70 71 75 80

NL10

3150

1800

70 71 75 80

142 172

212

292 352

432

220

157

8

110

4

±0.7

1156.8

55
