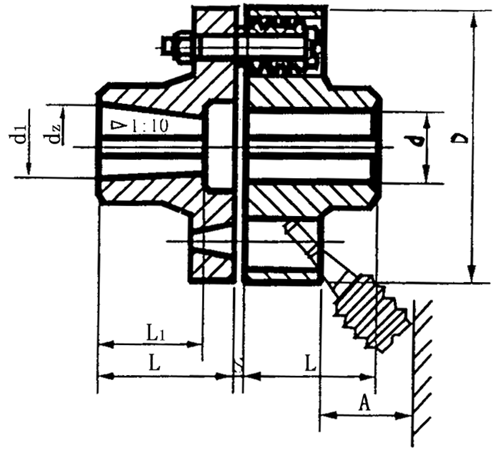

TL flexible pin & bush coupling

The coupling consists of two hubs:one pin hub with the corresponding pins and a bush hub.The torque is transmitted via the steel pins with their taper elastomer rings and the corresponding bores in the bush hub.

Category

flexible pin & bush coupling

Support

086-0317-7773773

Related
Get quotes

hiddenValue

  • Description
  • The coupling consists of two hubs:one pin hub with the corresponding pins and a bush hub.The torque is transmitted via the steel pins with their taper elastomer rings and the corresponding bores in the bush hub.
    As a result all kinds of shaft misalignment,for example caused by inaccurate alignment of the driving or driven elements,is compensated for reliably and vibrations and shocks are compensated for excellently.
    The coupling is maintenance-free and is used in general engineering and the pump industy,conveyor technology,etc.For an optimum adjustment to the different applications,14-off size are available covering torques up to 29100Nm.Apart from the standard programme customized solutions are available.
    Features of Tl series pin & bush coupling
    • Torsinally flexible, matintenace free
    • Vibration-reducing
    • Tadial assembly/disassembly
    • Axial plug-in,failsafe
    • Good dynamical features
    • Short design
    • Ptotected surfaces
    • Elastomer made of NBR
    • Type
      Nominal torque
      Tn
      N.m
      Max speed
      [n]
      r/min
      Bore diameter
      d,d1,dz
      Bore length
      Dimension
      Mass
      kg
      Y
      J,J1,Z
      D
      S
      A
      L
      L1
      TL1
      6.3
      8800
      9～14
      20～32
      14～20
      71
      3
      18
      1.2
      TL2
      16
      7600
      12～19
      32～42
      20～42
      80
      3
      18
      1.8
      TL3
      31.5
      6300
      16～25
      42～62
      30～62
      95
      4
      35
      2.0
      TL4
      63
      5700
      20～32
      52～82
      38～82
      106
      4
      35
      2.4
      TL5
      125
      4600
      25～40
      62～112
      44～112
      130
      5
      45
      8.5
      TL6
      250
      3800
      32～50
      82～112
      60～112
      160
      5
      45
      11
      TL7
      500
      3600
      40～65
      112～142
      84～142
      190
      5
      45
      16
      TL8
      710
      3000
      45～80
      112～172
      84～172
      224
      6
      65
      26
      TL9
      1000
      2850
      50～85
      112～172
      84～172
      250
      6
      65
      32
      TL10
      2000
      2300
      63～120
      142～212
      107～212
      315
      8
      80
      68
      TL11
      4000
      1800
      80～140
      172～252
      132～252
      400
      10
      100
      125
      TL12
      8000
      1450
      100～180
      212～302
      167～302
      475
      12
      130
      220
      TL13
      16000
      1150
      120～220
      212～352
      167～352
      600
      14
      180
      430
