FCL flexible pin & bush coupling

FCL flexible coupling is widely used for its compact design, easy installation, convenient maintenance, small size and light weight.

hiddenValue

  • Description
  • Features of FCL elastic pin coupling:

    1. FCL flexible coupling is widely used for its compact design, easy installation, convenient maintenance, small size and light weight.



    2. As long as the relative displacement between shafts are kept within the specified tolerance, couplings will operate the best function and have a longer working life.



    3. It's greatly demanded in medium and miner power transmission system driven by moter, such as speed reducer, hoist, compress, conveyor, spinning and weaving and ball mill.

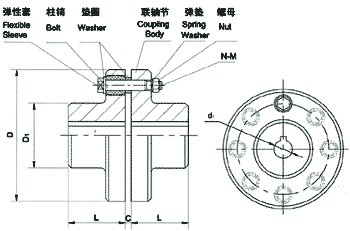

    Type


    Max torque
    N.m


    Max speed
    r/min

    D

    D 1

    d 1

    L

    C

    n-M

    Mass
    kg

    FCL90

    4

    4000

    90

    35.5

    11

    28

    3

    4-M8×50

    1.7

    FCL100

    10

    4000

    100

    40

    11

    35.5

    3

    4-M10×56

    2.3

    FCL112

    16

    4000

    112

    45

    13

    40

    3

    4-M10×56

    2.8

    FCL125

    25

    4000

    125

    50

    13

    45

    3

    4-M12×64

    4.0

    FCL140

    50

    4000

    140

    63

    13

    50

    3

    6-M12×64

    5.4

    FCL160

    110

    4000

    160

    80

    15

    56

    3

    8-M12×64

    8.0

    FCL180

    157

    3500

    180

    90

    15

    63

    3

    8-M12×64

    10.5

    FCL200

    245

    3200

    200

    100

    21

    71

    4

    8-M20×85

    16.2

    FCL224

    392

    2850

    224

    112

    21

    80

    4

    8-M20×85

    21.3

    FCL220

    618

    2550

    250

    125

    25

    90

    4

    8-M24×110

    31.6

    FCL280

    980

    2300

    280

    140

    34

    100

    4

    8-M24×116

    44.0

    FCL315

    1568

    2050

    315

    160

    41

    112

    4

    10-M24×116

    57.7

    FCL355

    2450

    1800

    355

    180

    60

    125

    5

    8-M30×50

    89.5

    FCL400

    3920

    1600

    400

    200

    60

    125

    5

    10-M30×150

    113

    FCL450

    6174

    1400

    450

    224

    65

    140

    5

    12-M30×150

    145

    FCL560

    9800

    1150

    560

    250

    85

    160

    5

    14-M30×150

    229

    FCL630

    15680

    1000

    630

    280

    95

    180

    5

    18-M30×150

    296
