TS-A flexible jaw type coupling

A jaw coupling is a type of general purpose power transmission coupling that also can be used in motion control (servo) applications.

hiddenValue

  • Description
  • A jaw coupling is a type of general purpose power transmission coupling that also can be used in motion control (servo) applications. It is designed to transmit torque (by connecting two shafts) while damping system vibrations and accommodating misalignment, which protects other components from damage. Jaw couplings are composed of three parts: two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider". The three parts press fit together with a jaw from each hub fitted alternately with the lobes of the spider. Jaw coupling torque is transmitted through the elastomer lobes in compression.

    Features of TS-A flexible jaw coupling:

    1.Compact structure and small inertia

    2.Absorb vibration

    3.Operating temperature 35-80oC

    4.It will not deform when overload,and no maintenance

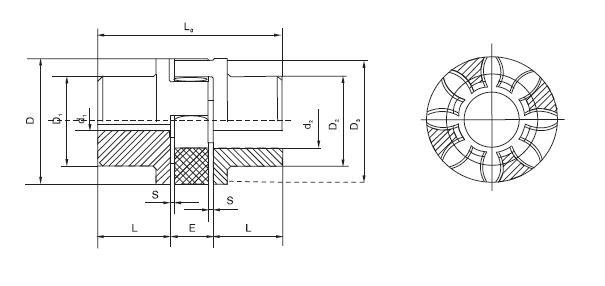

    Type

    Nominal

    torque

    (N*m)

    Max

    speed

    (rpm)

    Bore

    diameter

    d1、d2

    (mm)

    Bore length

    L

    (mm)

    L0

    (mm)

    D

    (mm)

    D1、D2

    (mm)

    D3

    (mm)

    d1、d2

    (mm)

    E

    (mm)

    S

    (mm)

    Moment of inertia

    (kg*m2)

    Mass

    (kg)

    Material

    TS14A

    7.5

    19000

    6-16

    11

    35

    30

    30

    -

    -

    13

    1.5

    0.00005

    0.10

    Cast aluminum

    TS19A

    10

    14000

    6-19

    25

    66

    40

    32

    40

    24

    16

    2

    0.00008

    0.30

    TS24A

    35

    10600

    8-24

    30

    78

    55

    40

    55

    28

    18

    2

    0.0002

    0.61

    TS28A

    95

    8500

    8-28

    35

    90

    65

    48

    65

    38

    20

    2.5

    0.0007

    1.00

    TS38A

    190

    9500

    10-38

    45

    114

    80

    66

    78

    45

    24

    3

    0.002

    2.08

    Cast iron

    TS42A

    265

    8000

    10-42

    50

    126

    95

    75

    94

    55

    26

    3

    0.004

    3.21

    TS48A

    310

    7100

    10-48

    56

    140

    105

    85

    104

    60

    28

    3.5

    0.006

    4.41

    TS55A

    410

    6300

    15-55

    65

    160

    120

    98

    118

    70

    30

    4

    0.012

    6.64

    TS65A

    625

    5600

    15-65

    75

    185

    135

    115

    -

    -

    35

    4.5

    0.025

    10.13

    TS75A

    1280

    4750

    20-75

    85

    210

    160

    135

    -

    -

    40

    5

    0.054

    16.03

    TS90A

    2400

    3750

    30-90

    100

    245

    200

    160

    -

    -

    45

    5.5

    0.139

    27.50

    TS100A

    3300

    3350

    30-115

    110

    270

    225

    180

    -

    -

    50

    6

    0.245

    38.50

    Nodular cast iron

    TS110A

    4800

    3000

    40-125

    120

    295

    255

    200

    -

    -

    55

    6.5

    0.435

    54.0

    TS125A

    6650

    2650

    40-145

    140

    340

    290

    230

    -

    -

    60

    7

    0.85

    81.8

    TS140A

    8600

    2360

    40-160

    155

    375

    320

    255

    -

    -

    65

    7.5

    1.4

    109.7

    TS160A

    12800

    2000

    60-180

    175

    425

    370

    290

    -

    -

    75

    9

    2.72

    162.7

    TS180A

    18650

    1800

    85-200

    195

    475

    420

    325

    -

    -

    85

    10.5

    4.95

    230.8
