TARR diaphragm coupling
TARR series diaphragm coupling is the basic type of flexible diaphragm coupling,and has many advantageous features
hiddenValue
- Description
-
TARR series diaphragm coupling is the basic type of flexible diaphragm coupling,and has many advantageous features:
-
1.High weight and torque radio.
-
2.Easy assembly and disassembly.
-
3.Due to its light weight ,simple design and superior balance repeatability,the TARR series diaphragm is ideal for every application.
-
4.The alloy steel bolts with high strength provide long service life.

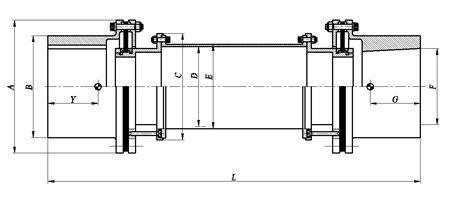

Dimension and performance parameters:
Type
Rated torque
(kNm)
Peak torque
(kNm)
Max speed
(rpm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
L
standard
(mm)
TARR150
6.5
9.6
32000
150
115
127
88
93
82
580
TARR180
10.5
15.8
25000
180
140
150
112
117
92.5
610
TARR230
19.6
30.5
20000
230
185
175
130
136
127
670
TARR280
37.5
56
18000
280
215
227
172
180
152
700
TARR330
72.3
108.4
15000
330
270
277
203
214
190
765
TARR380
101.7
152.5
12000
380
307
306
232
245
215
765
TARR430
158.2
238.3
10000
430
355
350
270
285
254
825
TARR560
452
1016
6000
560
480
505
304.8
340
343
1150
Type
Tightening torque
(Nm)
Mass
(Kg)
Torsional rigidity
KT
Moment of inertia
(Kgm^2)
Data of middle section per meter
Angular misalignment
Axial misalignment
Mass
(Kg)
Torsional rigidity
ΔKT(Nm
/radxE+06)
Moment of inertia
(Kgm^2)
Max
θmax
(deg)
Angular
rigidity
Kθ
Max
(mm)
Axial force
(N)
TARR150
15
13.62
0.18
0.027
5.3
115.82
0.0115
0.25o
0.73
1.35
498.3
TARR180
30
20.5
0.36
0.054
7.2
213.32
0.023
0.25o
1.75
2
856.6
TARR230
45
42.85
0.91
0.192
12.8
532.25
0.058
0.25o
3.93
2.5
1573.1
TARR280
120
70.7
1.94
0.496
18.5
1456.11
0.138
0.25o
9.71
3
2754.3
TARR330
120
119.7
3.86
1.159
30.2
3273.3
0.325
0.25o
15.32
3.5
3756.9
TARR380
160
149.3
6.09
2.12
39.5
5866.7
0.514
0.25o
19.56
3.5
4267.7
TARR430
160
223.9
10.54
3.54
55.35
10265.2
1.039
0.25o
31.75
3.5
7556
TARR560
220
730.1
32.9
24.12
143.2
37652.9
3.63
0.25o
79.81
3.5
12940.6
Tips:
- In the table,the length L is standard value which is designed according to the performance.And we can supply couplings of other length L.
- Each standard coupling selection can be customized for any given application.
- Contact Tanso engineer for coupling selections requiring:Higher speed,axial/angular misalignment or torque.
