TARS diaphragm coupling
TARS series diaphragm coupling is the basic type of short wheelbase flexible diaphragm coupling,and has following features
hiddenValue
- Description
-
TARS series diaphragm coupling is the basic type of short wheelbase flexible diaphragm coupling,and has following features:
- Light weight, simple structure.
- Easy assembly and disassembly.
- Due to its light weight ,simple design and superior balance repeatability,the TARS series diaphragm is ideal for short-wheelbase application.
- The alloy steel bolts with high strength provide long service life.

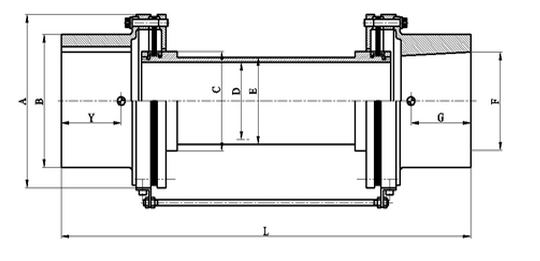

Dimensions and performance parameter :
Type
Rated torque
(kNm)
Peak torque
(kNm)
Max speed
(rpm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
L
standard (mm)
TARS150
6.5
9.6
32000
150
115
83
63
71
82
580
TARS180
10.5
15.8
25000
180
140
98
72
84
92.5
610
TARS230
19.6
30.5
20000
230
185
126
93
107
127
670
TARS280
37.5
56
18000
280
215
148
111
129
152
700
TARS330
72.3
108.4
15000
330
270
178
134
155
190
765
TARS380
101.7
152.5
12000
380
307
198
176
245
215
765
TARS430
158.2
238.3
10000
430
355
240
214
285
254
825
TARS560
452
1016
6000
560
480
340
293
340
343
1000
Type
Tightening torque
(Nm)
Mass
(Kg)
Torsional rigidity
KT
Moment of inertia
(Kgm^2)
Data of middle section per meter
Angular misalignment
Axial mislignment
Mass
(Kg)
Torsional rigidity
ΔKT(Nm
/radxE+06)
Moment of inertia
(Kgm^2)
Max
θmax
(deg)
Angular rigidity Kθ
(Nm/radxE+03)
Max
(mm)
Axial force
(N)
TARS150
15
13.12
0.15
0.019
5.3
76.9
0.0115
0.25o
0.71
1.35
490.1
TARS180
30
19.2
0.32
0.047
7.2
181.67
0.023
0.25o
1.73
2
825.2
TARS230
45
37.89
0.85
0.182
12.8
472
0.046
0.25o
3.72
2.5
1423.9
TARS280
120
65.32
1.67
0.413
18.5
1001.7
0.092
0.25o
8.99
3
2557.9
TARS330
120
105.2
3.43
1.09
30.2
2008.2
0.196
0.25o
14.17
3.5
3456.7
TARS380
160
135.3
5.09
1.92
39.5
3383.4
0.323
0.25o
18.22
3.5
4016.5
TARS430
160
210.5
8.92
3.11
55.35
6970.3
0.68
0.25o
30.19
3.5
6993.2
TARS560
220
675
34.8
22.52
143.2
32100.7
3.09
0.25o
71.2
3.5
11844.6
Tips:
- In the table,the length L is standard value which is designed according to the performance.And we can supply couplings of other length L.
- Each standard coupling selection can be customized for any given application.
- Contact Tanso engineer for coupling selections requiring:Higher speed,axial/angular misalignment or torque.
