TARM diaphragm coupling

浏览量
Weight:
0.00
Release time
2019/01/11 11:00
Inquiry
Booking
Application
Sample
Description

TARM series product is high-speed ,low-torque diaphragm coupling,which has following features:

  • Lighter weight,lower additional bending moment and better dynamic performence in high speed.
  • Easy assembly and disassembly.

  • Due to its light weight ,simple design and superior balance repeatability,the TARM series diaphragm is ideal for most application.

  • The alloy steel bolts with high strength provide long service life.

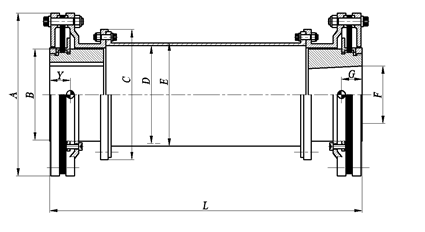

Dimension and performance parameter:



Type

Rated torque

(kNm)

Peak torque

(kNm)

Max speed

(rpm)

A



(mm)

B



(mm)

C



(mm)

D



(mm)

E



(mm)

F



(mm)

L

standard

(mm)

TARM150

5.2

7.52

32000

150

82

127

88

93

57

580

TARM180

8.8

13.11

25000

180

97

150

112

117

63

610

TARM230

18.8

28.6

20000

230

122

175

130

136

82

640

TARM280

32.3

48.9

18000

280

152

227

172

180

100

700

TARM330

60.2

88.7

15000

330

185

277

203

214

115

720

TARM380

85.5

127.61

12000

380

206

306

232

245

140

760

TARM430

136.3

204.6

10000

430

248

350

270

285

165

860

TARM560

435.4

1018.2

6000

560

340

505

304.8

340

228

600







Type

Tightening torque

(Nm)

Mass

(Kg)

Torsional rigidity

KT

Moment of inertia

(Kgm^2)

data of middle section per meter

Angular misalignment

Axial misalignment

Mass

(Kg)

Torsional rigidity

ΔKT(Nm

/radxE+06)

Moment of inertia

(Kgm^2)

Max

θmax

(deg)

Angular rigidity



Max

(mm)

Axial force

(N)

TARM150

15

12.36

0.17

0.018

5.3

115.82

0.0115

0.25o

0.62

1.35

426.1

TARM180

30

18.7

0.32

0.038

7.2

213.32

0.023

0.25o

1.51

2

813.7

TARM230

45

36.04

0.73

0.113

12.8

532.25

0.058

0.25o

3.11

2.5

1398.2

TARM280

120

62.4

1.64

0.303

18.5

1456.11

0.138

0.25o

8.35

3

2336.3

TARM330

120

104.1

3.17

0.705

30.2

3273.3

0.325

0.25o

13.34

3.5

3249.5

TARM380

160

143.8

5.21

1.289

39.5

5866.7

0.514

0.25o

17.12

3.5

3997.8

TARM430

160

226.9

8.09

1.536

55.35

10265.2

1.039

0.25o

28.79

3.5

6492.5

TARM560

220

589.2

26.9

11.45

143.2

37652.9

3.63

0.25o

66.3

3.5

11245.4



Tips:





  • In the table,the length L is standard value which is designed according to the performance.And we can supply couplings of other length L.
  • Each standard coupling selection can be customized for any given application.
  • Contact Tanso engineer for coupling selections requiring:Higher speed,axial/angular misalignment or torque.
