TS4C beam coupling
A beam coupling, also known as helical coupling, is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other.
hiddenValue
- Description
-
A beam coupling, also known as helical coupling, is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other. This design utilizes a single piece of material and becomes flexible by removal of material along a spiral path resulting in a curved flexible beam of helical shape. Since it is made from a single piece of material, the Beam Style coupling does not exhibit the backlash found in some multi-piece couplings. Another advantage of being an all machined coupling is the possibility to incorporate features into the final product while still keep the single piece integrity.
Features of TS4C beam coupling:
1.One-piece metallic beam coupling
2.Zero backlash
3.Absorb parallel,angular and axial misalignments
4.Identical clockwise and anticlockwise rotational characteristics
5.Material:Aluminum alloy and stainless steel
6.Clamp type

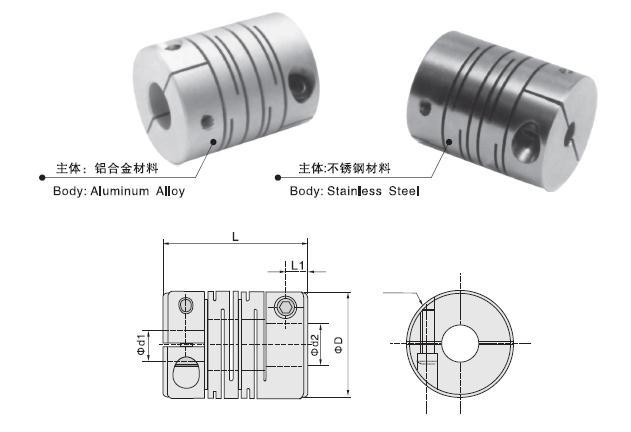

Model
Φ d1Φd2
Bore diameterΦD
L
L1
M
Wrench Torque
N·mTS4C-12
STS4C-123 4 5
12
18.5
2.5
M2
0.5
TS4C-16
STS4C-164 5
6 6.3616
23
3.25
M2.5
1
TS4C-20
STS4C-205 6
8 9.52520
26
3.75
M2.5
1
TS4C-25
STS4C-258 9.525
10 11 1225
31
4.25
M3
1.5
TS4C-32
STS4C-3210 11
12 1432
41
6.00
M4
2.5
TS4C-40
STS4C-4010 11 12 14
15 16 1840
56
8.5
M5
4
TS4C-50
STS4C-5012 14 15
16 18 1950
71
10.5
M6
8
TS4C-63
STS4C-6314 15 16
18 19 2463
90
13
M8
16
Model
Rated Torque
（N·m）Max.Torque
（N·m）Max.Rotational Frequency
（rpm）Moment of inertia
kg·m2Static Torsioral Stiffness
N m/radParallel misalignment
mmAngular misalignment
Axial misalignment
mmMass
gTS4C-12
0.5
1.0
10000
7.6×10-8
34
0.1
1.5
±0.3
4
TS4C-16
0.8
1.6
9300
3.2×10-7
46
0.1
1.5
±0.3
8
TS4C-20
11
2.2
7500
8.8×10-6
118
0.1
1.5
±0.3
18
TS4C-25
1.4
2.8
6000
2.5×10-6
167
0.15
1.5
±0.35
32
TS4C-32
2.8
5.6
4600
9.6×10-6
228
0.15
1.5
±0.35
66
TS4C-40
6.3
12.6
3600
3.2×10-6
346
0.2
1.5
±0.35
138
TS4C-50
11
22
3000
9×10-6
580
0.2
1.5
±0.35
272
TS4C-63
22
44
3000
3.1×10-6
843
0.2
1.5
±0.35
530
STS4C-12
0.8
1.6
22000
2.1×10-6
62
0.1
1.5
±0.3
14
STS4C-16
11
2.2
10000
8.9×10-6
83
0.1
1.5
±0.3
26
STS4C-20
1.6
3.2
9300
2.4×10-6
246
0.1
1.5
±0.3
48
STS4C-25
2.2
4.4
7500
7.0×10-6
315
0.15
1.5
±0.35
78
STS4C-32
5.5
11.0
6000
2.6×10-6
845
0.15
1.5
±0.35
174
STS4C-40
8.7
17.4
4600
8.9×10-6
990
0.2
1.5
±0.35
372
STS4C-50
16
32
3000
2.7×10-4
1380
0.2
1.5
±0.35
760
STS4C-63
38
76
2200
8.7×10-4
1790
0.2
1.5
±0.35
1410
