TS3FD mini discflange coupling
Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors.
hiddenValue
- Description
-
Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.
Features of TS3FD mini disc coupling:
1.High torque capacity and excellent response
2.Zero backlash
3.Stainless steel discs absorbs parallel ,angular and axial misalignments
4.Identical clockwise and anticlockwise rotational characteristics
5.Clamp type

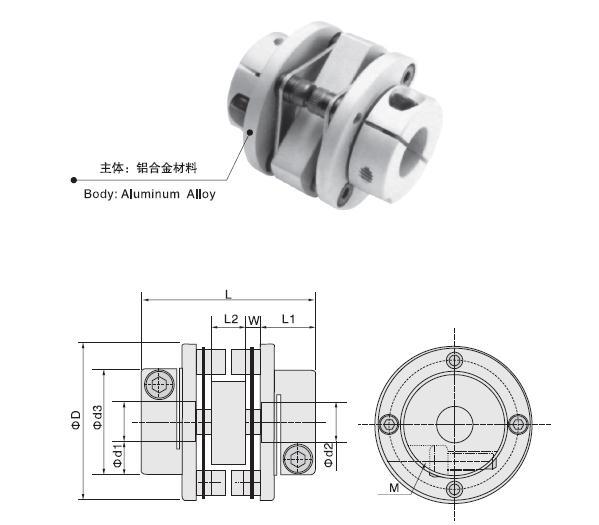

Fundamental dimensions
Model
Φ d1Φd2 Bore diameter
ΦD
L
ΦD3
W
L1
L2
M
Wrench Torque
N·mTS3D-34
6 7 8
34
37
21.6
3
12
7
M3
1.5
TS3D-39
8 9 10
39
47
24
3.5
14.5
8
M4
3.4
TS3D-44
10 11
12 1444
47
29.5
4
15
9
M4
3.4
TS3D-56
14 16
19 2056
61
38.0
5
20
11
M5
7.0
TS3D-68
15 19 20
22 24 2568
74
46.0
6
24
14
M6
14.0
TS3D-82
20 24 25
28 3082
98
56.0
8
30
22
M8
25.0
Parameters
Model
Rated Torque
（N·m）Max Torque
（N·m）Max Rotational Frequency
（rpm）Moment of inertia
kg·m2Static Torsioral Stiffness
N m/radParallel misalignment
mmAngular misalignment
Axial misalignment
mmMass
gTS3D-34
3.8
7.6
6000
6.5×10-6
1300
0.02
2
±0.3
46
TS3D-39
6.7
13.4
6000
12.5×10-6
2000
0.02
2
±0.3
75
TS3D-44
9.7
19.4
6000
24.5×10-6
2800
0.02
2
±0.3
98
TS3D-56
24
48
6000
82.5×10-6
4000
0.02
2
±0.3
194
TS3D-68
40
80
6000
225×10-4
6200
0.02
2
±0.3
376
TS3D-82
85
170
6000
985×10-4
8300
0.02
2
±0.3
640
